2-Speed Slimline Wall Control Thermostat
Item
7624
FEATURES & BENEFITS
• This control system is intended to be used with an evaporative cooler with a 2-speed blower and a water pump. It will also operate a water dump pump or valve, if equipped.
• The control is designed for fan motors up to 1 horsepower (120V) or 2 horsepower (240V), with water pump and dump pump up to 2 amps (120V) or 1 amp (240V) and dump valve 240VA.
• The fan motor may be 120V or 240V rated.
• The water pump and dump motors/valves share the same electrical supply, rated for 120V or 240V.

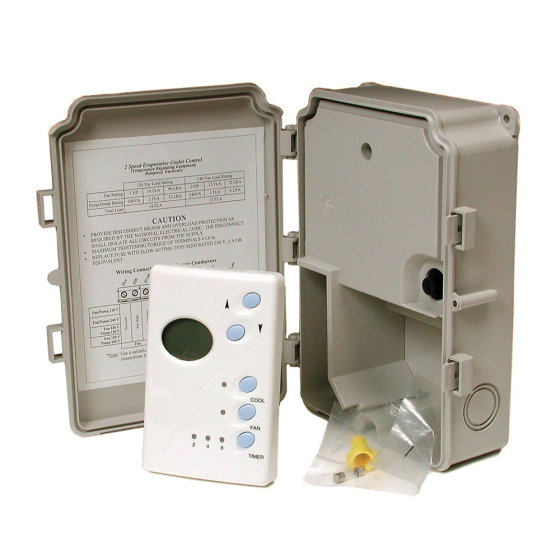

INCLUDES
• Slimline Wall Control Thermostat
• 2-Speed evaporative cooler control in rainproof enclosure
• Wire nut for common earth connection
• Spare 2 amp fuse for water pump (and optional pump device)
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 2.000000 |
