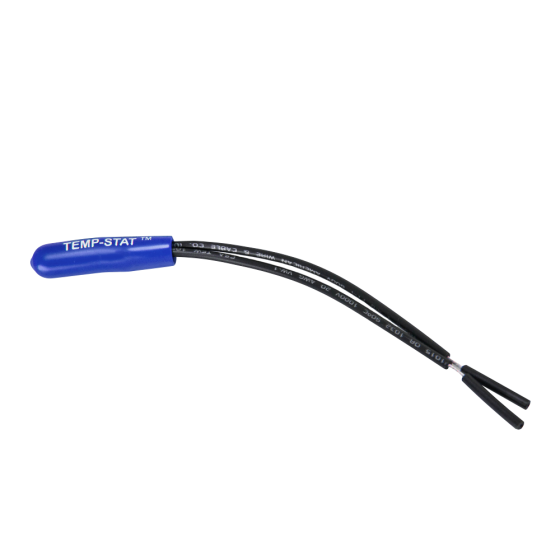

75°F Temp-Stat™ (Cooling)

Item

CL-75

FEATURES

The Temp-Stat™ is a temporary construction thermostat preset to a non-adjustable temperature for energy savings during construction.

CONSTRUCTION

• Thermostat Metal encapsulated with outer PVC jacket

• Leads Pre-stripped, 20 AWG stranded rated at 600V with PVC jacket

ELECTRICAL

• Voltage For 24 Volt control circuits only

• Maximum Current 1.0 Amp

• Differential 3° F

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	.1
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	1.000000
Exterior Dimensions (H) (inches)	1.000000
Shipping Weight (lbs)	0.100000
