Robertshaw® Dual Gas Valve 1/2" x 3/4"

PRODUCT DETAILS

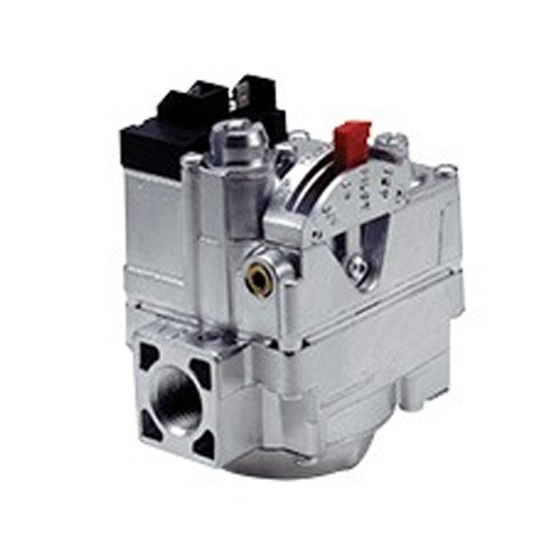

The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

FEATURES & BENEFITS

• Gas cock dial marking Off - Pilot - On
• Pilot outlet 1/4” tubing
• Ambient temperature of -40°F to 175°F
• Combination screw/spade terminal type
• Maximum inlet pressure 14” WC (0.5 PSI)
• Standard NEMA terminals
• Inlet filtered screen
• Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
• Multiple actuators available
• RoHS compliant
• Series Application: 24V Dual
• Pressure Regulation: Uni-Kit Natural Gas
• Capacity: 150,000 BTU
• Reducer Bushing (NPT) (1) 3/4" x 1/2", (1) 1/2" x 3/8"
• Inlet Size: 1/2"
• Electrical Rating: 24V AC @ 0.5 Amps, 50/60 Hz
• Pilot: 1/4" tubing
• Outlet Size: 3/4"
• Side Outlets: None
• Maximum Inlet Pressure: 14" WC (1/2 PSI)

CROSS REFERENCE

• LENNOX INDUSTRIES - 10P33
• CLIMATE CONTROL - 1585-957
• ITT/REZNOR - 160-82198
• REPCO - 2022-139
• STEVECO - 215508
• ROBERTSHAW - 301-531-524
• ADVANCED TECHNOLOGIES - 3055A
• WHITE-RODGERS - 36C03-434
• ROBERTSHAW - 38593B001
• ROBERTSHAW - 403-501-571
• UNKNOWN - 403-501-729
• ROBERTSHAW - 442-501-730
• ROBERTSHAW - 4B1-501-729
• ROBERTSHAW - 4B1-501-832
• ROBERTSHAW - 4D4-501-729
• ROBERTSHAW - 4D4-501-819
• ROBERTSHAW - 4D8-501-502
• WESTWARD - 4E287
• UNKNOWN - 506328
• UNKNOWN - 571-044-360
• MODINE MFG. - 5H73117B2
• RHEEM - 60-18556
• RHEEM - 60-18556-05
• RHEEM - 60-18556-06
• RHEEM - 60-22525-01
• LENNOX INDUSTRIES - 61P85
• UNKNOWN - 61P8501
• UNI-LINE - 63593
• BARNETT BRASS - 661712
• UNI-LINE - 700400
• Uni-Line - 700-400
• UNI-LINE - 700401
• Robertshaw - 700-401
• UNI-LINE - 700402
• Robertshaw - 700-402
• UNI-LINE - 700406
• ROBERTSHAW - 7200ER
• ROBERTSHAW - 7200ER-LP
• RHEEM - 74-60-18556-05
• RHEEM - 74-60-18556-06
• ROBERTSHAW - 7A0-A1B-001
• ROBERTSHAW - 7A0-A1B-042
• ROBERTSHAW - 7A0-A4C-022
• UNKNOWN - 7A0B1D004
• ROBERTSHAW - 7A0-B1D-004
• ADVANCED TECHNOLOGIES - 7A0B1D036
• ROBERTSHAW - 7A0-B1D-036
• ADVANCED TECHNOLOGIES - 7A0C9E037
• ROBERTSHAW - 7A0-C9E-037
• MODINE MFG. - 7A7A1B001
• ROBERTSHAW - 7A7-A1B-001
• PENN/BASO - 92A6103G2
• PENN/BASO - 92D2104B25
• PENN/BASO - 92D2104G4
• PENN/BASO - 92D2204G14
• PENN/BASO - 92D2204G9
• PENN/BASO - 92S2104G1
• PENN/BASO - 92S2106G1
• PENN/BASO - 92S2106G13
• PENN/BASO - 92S2204G4
• PENN/BASO - 92S2205G8
• PENN/BASO - 92S2206G9
• PENN/BASO - 92Y2104G13
• PENN/BASO - AK4251-1
• PENN/BASO - AK4351-1
• PENN/BASO - AK5351-15
• PENN/BASO - AKC4311-1
• PENN/BASO - AKC4321-1
• PENN/BASO - AKC4351-1
• ITT/GENERAL CONTROL - B57AB162
• ITT/GENERAL CONTROL - B57AB69
• ITT/GENERAL CONTROL - B57RA68
• ITT/GENERAL CONTROL - B57RB161
• ITT/GENERAL CONTROL - B57RB68
• ITT/GENERAL CONTROL - B57RBD144
• ITT/GENERAL CONTROL - B57RF58
• ITT/GENERAL CONTROL - B57RH161
• ITT/GENERAL CONTROL - B59R02
• ITT/GENERAL CONTROL - B59R06
• ITT/GENERAL CONTROL - B59SK33
• HONEYWELL - C800A1070
• CARRIER/AIR COND.CO. - EF32CB212
• CARRIER/AIR COND.CO. - EF32CG190
• CARRIER/AIR COND.CO. - EF33CK253
• CARRIER/AIR COND.CO. - EF33CZ209
• CARRIER/AIR COND.CO. - EF53CK186
• PENN/BASO - G92CBC-1
• PENN/BASO - G92CGB-1
• PENN/BASO - G92CGB-4
• PENN/BASO - G92CGB-6
• PENN/BASO - G92CGC
• PENN/BASO - G92FGB
• PENN/BASO - G92FGC
• PENN/BASO - G92HGB
• PENN/BASO - G92HGC
• PENN/BASO - G92HGC-1
• PENN/BASO - G92PGF
• PENN/BASO - GFV2003G26
• PENN/BASO - GFV2003G53
• TED REED THERMAL INC - JG67F61
• ITT/GENERAL CONTROL - K47RB03
• JOHNSTONE SUPPLY - L37-540
• BORG-WARNER (YORK) - O25-23019-000
• CARRIER/AIR COND.CO. - P681-1501
• ESSEX - SX242N
• HONEYWELL - V800A1005
• HONEYWELL - V800A1021
• HONEYWELL - V800A1039
• HONEYWELL - V800A1112
• HONEYWELL - V800A1120
• HONEYWELL - V800A1237
• HONEYWELL - V800A1294
• HONEYWELL - V800A1310
• HONEYWELL - V800A1328
• HONEYWELL - V800A1344
• HONEYWELL - V800A1369
• HONEYWELL - V800A1418
• HONEYWELL - V800A1476
• HONEYWELL - V800A1484
• HONEYWELL - V800A1534
• HONEYWELL - V800A1666
• HONEYWELL - V800A7002
• HONEYWELL - V800A7010
• HONEYWELL - V800A7028
• HONEYWELL - V800A7036
• HONEYWELL - V800A7044
• HONEYWELL - V800A7051
• HONEYWELL - V800A7085
• HONEYWELL - V800A7093
• HONEYWELL - V800A7135
• HONEYWELL - V800A7143
• HONEYWELL - V800A7150
• HONEYWELL - V800A7168
• HONEYWELL - V800A7176
• HONEYWELL - V800H1057
• HONEYWELL - V800H1081
• HONEYWELL - V8200A2018
• HONEYWELL - V8200A2042
• HONEYWELL - V8200A2059
• HONEYWELL - V850A1166
• HONEYWELL - VR800A1012
• HONEYWELL - VR800A1020
• HONEYWELL - VR800A1038
• HONEYWELL - VR800A1095
• HONEYWELL - VR800A1152
• HONEYWELL - VR800A1178
• HONEYWELL - VR800A1186
• HONEYWELL - VR800A1194
• HONEYWELL - VR800A1210
• HONEYWELL - VR800A1228
• HONEYWELL - VR800A1251
• HONEYWELL - VR800A1277
• HONEYWELL - VR800A1285
• HONEYWELL - VR800A1301
• HONEYWELL - VR800A1335
• HONEYWELL - VR800A1343
• HONEYWELL - VR800A1350
• HONEYWELL - VR800A1368
• HONEYWELL - VR800A1392
• HONEYWELL - VR800A1418
• HONEYWELL - VR800A1467
• HONEYWELL - VR800A1491
• HONEYWELL - VR800A1509
• HONEYWELL - VR800A1517
• HONEYWELL - VR800A1541
• HONEYWELL - VR800A1574
• HONEYWELL - VR800A1582
• HONEYWELL - VR800A1590
• HONEYWELL - VR800A1608
• HONEYWELL - VR800A1616
• HONEYWELL - VR800A1624
• HONEYWELL - VR800H1306
• HONEYWELL - VR8200A2009
• HONEYWELL - VR8200A2033
• HONEYWELL - VR8200A2041
• HONEYWELL - VR8200A2058
• HONEYWELL - VR8200A2074
• HONEYWELL - VR8200A2082
• HONEYWELL - VR8200A2090
• HONEYWELL - VR8200A2108
• HONEYWELL - VR8200A2116
• HONEYWELL - VR8200A2124
• HONEYWELL - VR8200A2132
• HONEYWELL - VR8200A2165
• HONEYWELL - VR8200A2173
• HONEYWELL - VR8200A2181
• HONEYWELL - VR8200A2215
• HONEYWELL - VR8200A2223
• HONEYWELL - VR8200A2256
• HONEYWELL - VR8200A2744
• HONEYWELL - VR8300A3500
