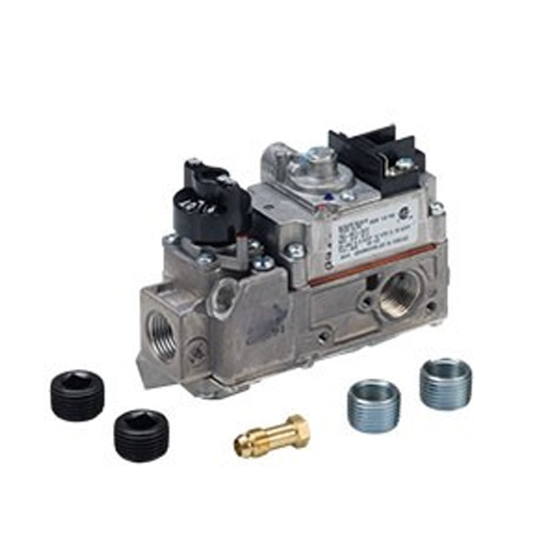

Robertshaw® Low Capacity Gas Valve 1/2" x 1/2"

Item
710-402
  • California Prop 65

PRODUCT DETAILS

The Robertshaw® 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity an limited space applications. Features include three-position outlets, multi-positional capability and component replaceability.

FEATURES & BENEFITS

• Low capacity with 3-13/16” H x 4-21/32” L x 1-29/32” W dimensions
• Gas cock dial marking Off - Pilot - On
• Ambient temperature of -40°F to 175°F
• Pilot outlet 1/4” tubing
• Maximum inlet pressure 14” WC (0.5 PSI)
• Standard NEMA terminals
• Inlet filtered screen
• Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
• Multiple actuators available
• RoHS compliant
• Series Application: 24 Volt Low Capacity
• Pressure Regulation: 3.5" WC Natural Gas
• Capacity: 70,000 BTU
• Reducer Bushing (NPT) (2) 1/2" x 3/8"
• Inlet Size: 1/2"
• Capillary Length: N/A
• Electrical Rating: 12V DC, 24V AC
• Application: Wall furnaces
• Outlet Size: 1/2"

CROSS REFERENCE

• 160949 - SUBURBAN APPLIANCE
• 2697 - UNI-LINE
• 4102907 - LV ASSOCIATES INC.
• 5492 - ATWOOD MOBILE PROD.
• 63401 - UNI-LINE
• 63402 - ROBERTSHAW
• 7000ERCLC - ROBERTSHAW
• 7000ERLC - ROBERTSHAW
• 701502206 - ATWOOD MOBILE PROD.
• 706501502 - UNKNOWN
• 706-501-502 - ROBERTSHAW
• 709501207 - UNKNOWN
• 709-501-207 - ROBERTSHAW
• 709501499 - ORRVILLE PROD.
• 709-501-499 - ROBERTSHAW
• 709501502 - LV ASSOCIATES INC.
• 709501524 - UNKNOWN
• 709502204 - SUBURBAN APPLIANCE
• 709502208 - UNKNOWN
• 709-503-521 - ROBERTSHAW
• 712502204 - UNKNOWN
• 713501502 - UNKNOWN
• 713501531 - UNKNOWN
• 713-503-521 - ROBERTSHAW
• 714501506 - ROBERTSHAW
• 714501508 - ROBERTSHAW
• 714501508B - ROBERTSHAW
• 714502503 - ROBERTSHAW
• 714502509 - ROBERTSHAW
• 714502509B - ROBERTSHAW
• 716502206 - UNKNOWN
• 736501527 - ROBERTSHAW
• 739501502 - HYDROFLAME CORP
• 739501527 - Invensys Climate Controls
• 739501527 - Invensys Climate Controls
• 743501524 - UNKNOWN
• 747501525 - ROBERTSHAW
• 747502503 - UNKNOWN
• 79-8339 - UNKNOWN
• 99722335 - UNKNOWN
• 99728725 - WHIRLPOOL
• 99794882 - WHIRLPOOL
• 99794884 - WHIRLPOOL
• 99794885 - WHIRLPOOL
• 99794886 - WHIRLPOOL
• 99794887 - WHIRLPOOL
• 99794888 - WHIRLPOOL
• 99794889 - WHIRLPOOL
• B57RA68 - ITT/GENERAL CONTROL
• B57RA68E - ITT/GENERAL CONTROL
• G93AGB-1 - JOHNSON CONTROLS
• L37-436 - JOHNSTONE SUPPLY
• V0070100 - TELEDYNE STILL/LAARS

Specification
Gas Connection Size 1/2" x 1/2"
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 4.000000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 5.000000
