Robertshaw® Millivolt Gas Valve Kit 1/2" x 1/2"
Item
710-296
PRODUCT DETAILS

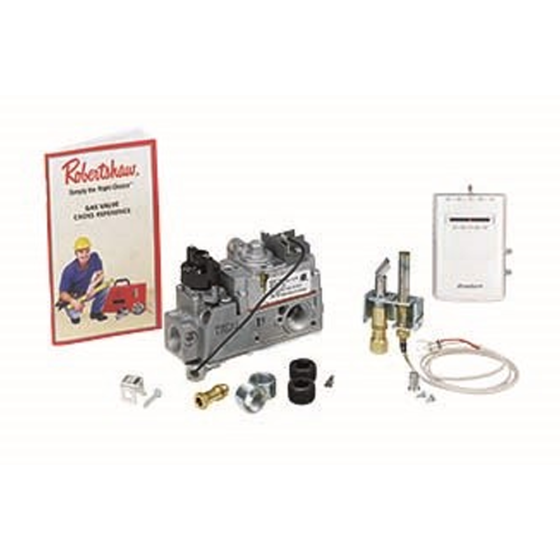

The Robertshaw® 710-296 Millivolt Kit includes a low profile millivolt actuated gas valve, a pilot generator kit and an easy-to-use mechanical wall thermostat. The kit includes the Robertshaw gas valve cross reference pocket guide.
FEATURES & BENEFITS
• Most common parts needed in retrofit millivolt applications• Reduces inventory with most common parts
• Easy-to-select, use and install
• Inlet Size: 1/2"
• Outlet Size: 1/2"
INCLUDES
• Series Application: Millivolt Kit• Hood Type: 1820-009 Pilot Kit
• Model: Braeburn 505 Megaswitch Mechanical Thermostat
• Gas Valve: 710-502 Low Profile
CROSS REFERENCE
• 63382 - UNI-LINE• 710096 - UNI-LINE
Specification | |
---|---|
Gas Connection Size | 1/2" x 1/2" |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 5.000000 |
