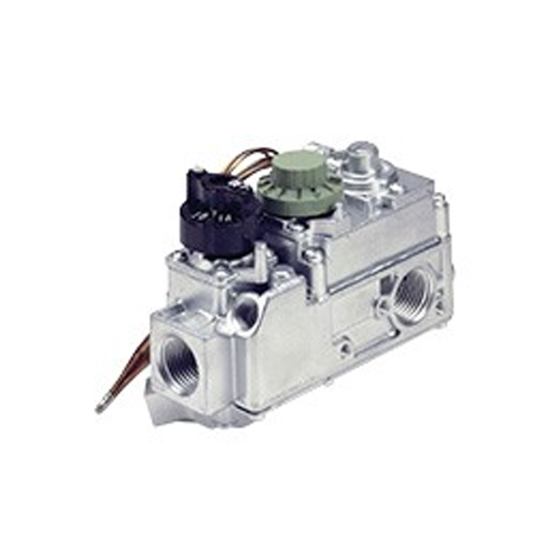

Robertshaw® Low Capacity Gas Valve 1/2" x 1/2"

PRODUCT DETAILS

The Robertshaw® 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity and limited space applications. Features include three-position outlets, multi-positional capability and component replaceability.

FEATURES & BENEFITS

• Low capacity with 3-13/16”H x 4-21/32”L x 1-29/32” W dimensions
• Gas cock dial marking Off - Pilot - On
• Ambient temperature of -40°F to 175°F
• Pilot outlet 1/4” tubing
• Maximum inlet pressure 14” WC (0.5 PSI)
• Standard NEMA terminals
• Inlet filtered screen
• Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
• Multiple actuators available
• RoHS compliant
• Series Application: Hydraulic Snap-Action Low Capacity
• Pressure Regulation: 3.5" WC Natural Gas
• Capacity: 70,000 BTU Natural Gas or 112,000 BTU LP Gas
• Reducer Bushing (NPT) (2) 1/2" x 3/8"
• Inlet Size: 1/2"
• Capillary Length: 36"
• Pilot: 1/4" tubing outlet
• Temperature Range: 58°F to 90°F, 175°F max ambient
• Comments: Hydraulic Valve
• Application: Wall furnaces replaces tv-27
• Outlet Size: 1/2"
• Maximum Inlet Pressure: 14" WC (1/2 PSI)

CROSS REFERENCE

• 10-500 - ELSTON MFG
• 160807 - SUBURBAN APPLIANCE
• 36C09-210 - WHITE-RODGERS
• 506307 - UNKNOWN
• 63369 - UNI-LINE
• 7000SRLC - ROBERTSHAW
• 70092 - LOUISVILLE TIN & STOVE
• 70093 - LOUISVILLE TIN & STOVE
• 705312012 - UNKNOWN
• 709311036 - UNKNOWN
• 709312037 - UNKNOWN
• 709321003 - UNKNOWN
• 709322034 - UNKNOWN
• 709332058 - UNKNOWN
• 710331003 - UNKNOWN
• 710331044 - UNKNOWN
• 710332006 - UNKNOWN
• 710351044 - UNKNOWN
• 710-351-044 - ROBERTSHAW
• 710352058 - UNKNOWN
• 713312006 - UNKNOWN
• 713331003 - UNKNOWN
• 713331025 - UNKNOWN
• 713332006 - UNKNOWN
• 713332024 - UNKNOWN
• 713351003 - UNKNOWN
• 713-351-003 - ROBERTSHAW
• 719311022 - EMPIRE COMFORT SYS.
• 719312023 - EMPIRE COMFORT SYS.
• 719331018 - UNKNOWN
• 721311020 - LOUISVILLE TIN & STOVE
• 721312016 - UNKNOWN
• 721312021 - LOUISVILLE TIN & STOVE
• 725312028 - SUBURBAN APPLIANCE
• 738332086 - UNKNOWN
• 739331003 - UNI-LINE
• 739351003 - LOUISVILLE TIN & STOVE
• 739-351-003 - ROBERTSHAW
• 739351064 - UNI-LINE
• 739351064 - UNI-LINE
• 743311036 - WILLIAMS FURNACE
• 743311044 - LOUISVILLE TIN & STOVE
• 743312037 - ELSTON MFG
• 743312050 - WILLIAMS FURNACE
• 743312058 - LOUISVILLE TIN & STOVE
• 743312070 - EMPIRE COMFORT SYS.
• 743312075 - UNKNOWN
• 743312085 - UNKNOWN
• 743331044 - LOUISVILLE TIN & STOVE
• 743332058 - UNKNOWN
• 743351025 - UNKNOWN
• 743-351-025 - ROBERTSHAW
• 743351044 - UNKNOWN
• 743352058 - UNKNOWN
• 743-352-058 - ROBERTSHAW
• 744331079 - WILLIAMS FURNACE
• 744331082 - UNKNOWN
• 744332006 - UNKNOWN
• 744332050 - WILLIAMS FURNACE
• 744332057 - UNKNOWN
• 744332080 - WILLIAMS FURNACE
• 744332083 - UNKNOWN
• 744351025 - UNKNOWN
• 744351044 - UNKNOWN
• 744352062 - UNKNOWN
• 757311059 - LOUISVILLE TIN & STOVE
• 757312060 - LOUISVILLE TIN & STOVE
• 771312071 - EMPIRE COMFORT SYS.
• 771312074 - UNKNOWN
• 78-8264 - UNKNOWN
• 932124 - EMPIRE COMFORT SYS.
• 932218 - EMPIRE COMFORT SYS.
• L37-525 - JOHNSTONE SUPPLY
• P295101A - WILLIAMS FURNACE
• P295300A - WILLIAMS FURNACE
• P295301A - WILLIAMS FURNACE
• P501704 - WILLIAMS FURNACE
• P501705 - WILLIAMS FURNACE
• R2701 - EMPIRE COMFORT SYS.
• R2703 - EMPIRE COMFORT SYS.
• TV27RA05 - ITT/GENERAL CONTROL
• TV27RB20 - ITT/GENERAL CONTROL
