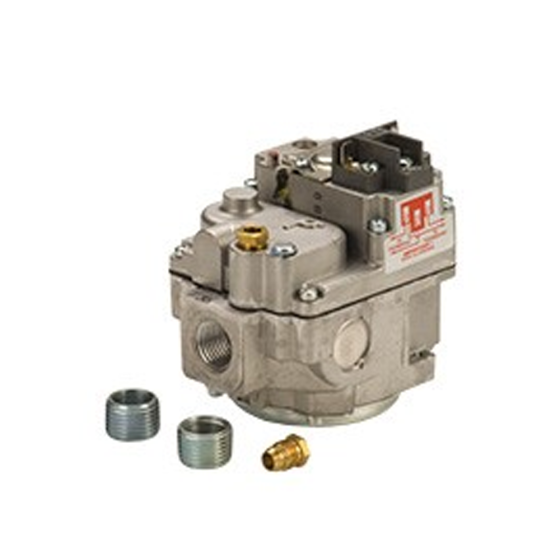

Robertshaw® Millivolt Gas Valve 1/2" x 1/2"

PRODUCT DETAILS

The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

FEATURES & BENEFITS

• Gas cock dial marking Off - Pilot - On
• Pilot outlet 1/4” tubing
• Ambient temperature of -40°F to 175°F
• Terminal type combination screw/spade
• Maximum inlet pressure 14” WC (0.5 PSI)
• Standard NEMA terminals
• Inlet filtered screen
• Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
• RoHS compliant
• Series Application: Millivolt Diaphragm/Solenoid Gas Valve
• Pressure Regulation: None
• Capacity: 240,000 BTU
• Reducer Bushing (NPT)
• Inlet Size: 1/2"
• Electrical Rating: 250mV to 750mV
• Comments: Diaphragm valve only-no gas cock or safety magnet.
• 3 Position Outlet Straight-Thru (FPT): 1/2"
• 3 Position Outlet Side (FPT) with Plugs

CROSS REFERENCE

• 304811393 - UNI-LINE
• 305701389 - NORDYNE
• 305705393 - UNI-LINE
• 305-705-393 - ROBERTSHAW
• 305-705-393A - ROBERTSHAW
• 305811389 - UNKNOWN
• 305811393 - UNI-LINE
• 305815393 - UNI-LINE
• 36C21U-200 - WHITE-RODGERS
• 36C21U-203 - WHITE-RODGERS
• 36C21U-204 - WHITE-RODGERS
• 36C21U-206 - WHITE-RODGERS
• 63296 - UNI-LINE
• 7000BGVMV - ROBERTSHAW
• 700-517 - Robertshaw
• 7010BGVMV - ROBERTSHAW
• B60A94 - ITT/GENERAL CONTROL
• B60B14 - ITT/GENERAL CONTROL
• B60G14 - ITT/GENERAL CONTROL
• B60R54 - ITT/GENERAL CONTROL
• B60Y14 - ITT/GENERAL CONTROL
• B60Y54 - ITT/GENERAL CONTROL
• B60Y84 - ITT/GENERAL CONTROL
• B60Y84A102 - ITT/GENERAL CONTROL
• B60Y84A112 - ITT/GENERAL CONTROL
• B60Y84H103 - ITT/GENERAL CONTROL
• B60Y85 - ITT/GENERAL CONTROL
• B60Y94 - ITT/GENERAL CONTROL
• VS8187A 1351 - HONEYWELL
• VS8187A1005 - HONEYWELL
• VS8187A1013 - HONEYWELL
• VS8187A1070 - HONEYWELL
• VS8187A1088 - HONEYWELL
• VS8187A1161 - HONEYWELL
• VS8187A1211 - HONEYWELL
• VS8187A1278 - HONEYWELL
• VS8187A1344 - HONEYWELL
• VS8187A1351 - HONEYWELL
• VS8187A1542 - HONEYWELL
• VS8187A1X3 - HONEYWELL
• VS8187A1X4 - HONEYWELL
• VS8187A3X3 - HONEYWELL
• VS8187A3X4 - HONEYWELL
• VS8187A7X4 - HONEYWELL
• VS8187A9X4 - HONEYWELL
