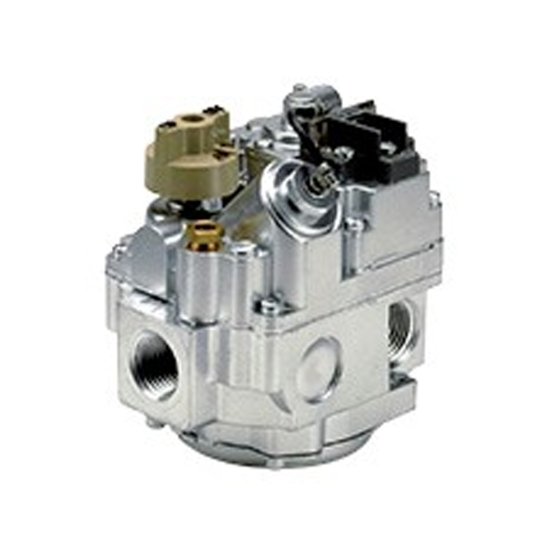

Robertshaw® Millivolt Gas Valve 1/2" x 1/2"

PRODUCT DETAILS

The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

FEATURES & BENEFITS

• Gas cock dial marking Off - Pilot - On
• Pilot outlet 1/4” tubing
• Ambient temperature of -40°F to 175°F
• Terminal type combination screw/spade
• Maximum inlet pressure 14” WC (0.5 PSI)
• Standard NEMA terminals
• Inlet filtered screen
• Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
• RoHS compliant
• Series Application: Millivolt Diaphragm/Solenoid Gas Valve
• Pressure Regulation: 3.5" WC Natural Gas
• Capacity: 100,000 BTU
• Reducer Bushing (NPT)
• Inlet Size: 1/2"
• Electrical Rating: 250mV to 750mV
• Comments: Coaxial thermopile and 2 lead thermopile can be used
• 3 Position Outlet Straight-Thru (FPT): 1/2"
• 3 Position Outlet Side (FPT) with Plugs: 1/2"

CROSS REFERENCE

• FRYMASTER - 0764
• ROBERTSHAW - 107-701-020
• ROBERTSHAW - 107-701-046
• ROBERTSHAW - 107-701-094
• ROBERTSHAW - 109-701-020
• PERFECTIONSCHWANK - 110908-G1
• PERFECTIONSCHWANK - 110909-G1
• ROBERTSHAW - 111-701-083
• ROBERTSHAW - 111-701-139
• ROBERTSHAW - 113-701-094
• UNI-LINE - 1200-502
• ROBERTSHAW - 135-701-020
• ROBERTSHAW - 135-701-094
• VULCANHART/PMI - 3153C
• EMPIRECOMFORTSYS. - 340701400
• ROBERTSHAW - 340-701-400
• ROBERTSHAW - 340-701-404
• ROBERTSHAW - 340-701-405
• ROBERTH.PETERSON - 341701400
• FRYMASTER - 341701404
• ROBERTSHAW - 341-701-405
• ROBERTSHAW - 341-701-417
• FRYMASTER - 344701402
• ROBERTSHAW - 344-701-402
• UNI-LINE - 344811400
• UNI-LINE - 344811402
• ROBERTSHAW - 344-811-402
• ROBERTSHAW - 367-701-400
• PERFECTIONSCHWANK - 4D2701400
• PERFECTIONSCHWANK - 4D2701404
• ROBERTSHAW - 4D2-701-404
• UNKNOWN - 4D2811400
• GRAINGER - 4E127
• W.W.GRAINGER - 4E127
• PERFECTIONSCHWANK - 4E1701400
• ROBERTSHAW - 4E1-701-400
• UNI-LINE - 63282
• ROBERTSHAW - 7000AMVR
• UNI-LINE - 700-C502
• UNKNOWN - 764
• WHIRLPOOL - 99726090
• PERFECTIONSCHWANK - B110405G1
• PERFECTIONSTOVE - B110405G1
• PERFECTIONSTOVE - B110405-G1
• PERFECTIONSTOVE - B110502-G1
• ITT/GENERALCONTROL - B62YA641
• ITT/GENERALCONTROL - B62YA642
• ITT/GENERALCONTROL - B62YA8081
• ITT/GENERALCONTROL - B62YA8082
• ITT/GENERALCONTROL - B62YA841
• ITT/GENERALCONTROL - B62YA842
• ITT/GENERALCONTROL - B63
• ITT/GENERALCONTROL - B63Y8431A203
• ITT/GENERALCONTROL - B63YA6411
• ITT/GENERALCONTROL - B63YA6412
• ITT/GENERALCONTROL - B63YA80811
• ITT/GENERALCONTROL - B63YA80812
• ITT/GENERALCONTROL - B63YA8411
• ITT/GENERALCONTROL - B63YA8412
• ITT/GENERALCONTROL - B64
• ITT/GENERALCONTROL - B64YA220A00A103
• ITT/GENERALCONTROL - B64YA220B10
• ITT/GENERALCONTROL - B64YA220B10A103
• ITT/GENERALCONTROL - B64YA40B10
• ITT/GENERALCONTROL - B64YA40B10A103
• ITT/GENERALCONTROL - B64YA50B10
• ITT/GENERALCONTROL - B64YA50B10A10
• ITT/GENERALCONTROL - B67RA01
• ITT/GENERALCONTROL - B67RA05
• ITT/GENERALCONTROL - B67RA07
• ITT/GENERALCONTROL - B67RA129
• ITT/GENERALCONTROL - B67RA134
• ITT/GENERALCONTROL - B67RA137
• ITT/GENERALCONTROL - B67RA138
• ITT/GENERALCONTROL - B67RA143
• ITT/GENERALCONTROL - B67RA144
• ITT/GENERALCONTROL - B67RA28
• ITT/GENERALCONTROL - B67RA32
• ITT/GENERALCONTROL - B67RA33
• ITT/GENERALCONTROL - B67RA47
• ITT/GENERALCONTROL - B67RA48
• ITT/GENERALCONTROL - B67RA60
• ITT/GENERALCONTROL - B67RA78
• ITT/GENERALCONTROL - B67RA80
• ITT/GENERALCONTROL - B67RA82
• ITT/GENERALCONTROL - B67RA87
• ITT/GENERALCONTROL - B67RA97
• ITT/GENERALCONTROL - B67RAA150
• ITT/GENERALCONTROL - B67RAG34
• ITT/GENERALCONTROL - B67RB20
• ITT/GENERALCONTROL - BX66DYA30B10
• ITT/GENERALCONTROL - BX66DYA30B20
• ITT/GENERALCONTROL - BX66DYA40B10
• ITT/GENERALCONTROL - BX66DYA40B20
• ITT/GENERALCONTROL - BX66YA100E10
• ITT/GENERALCONTROL - BX66YA100E20
• ITT/GENERALCONTROL - BX66YA110E10
• ITT/GENERALCONTROL - BX66YA110E20
• ITT/GENERALCONTROL - BX66YA120F10
• ITT/GENERALCONTROL - BX66YA120F20
• ITT/GENERALCONTROL - BX66YA20B10
• ITT/GENERALCONTROL - BX66YA20B20
• ITT/GENERALCONTROL - BX66YA50B10
• ITT/GENERALCONTROL - BX66YA50B20
• ITT/GENERALCONTROL - BX66YA60C10
• ITT/GENERALCONTROL - BX66YA60C20
• HONEYWELL - CS5133A1012
• JOHNSTONESUPPLY - L36-736
• MARTININD. - P-2322
• HONEYWELL - V400A1009
• HONEYWELL - VS8117D1017
• HONEYWELL - VS8148A1007
• HONEYWELL - VS8148A1015
• HONEYWELL - VS8148A1023
• HONEYWELL - VS8148A1031
• HONEYWELL - VS8148A1049
• HONEYWELL - VS8148A1056
• HONEYWELL - VS8148A1064
• HONEYWELL - VS8148B1006
• HONEYWELL - VS8148B1014
• HONEYWELL - VS8148B1022
• HONEYWELL - VS8148B1030
• HONEYWELL - VS8148B1048
• HONEYWELL - VS8190A1017
• HONEYWELL - VS8190A1025
• HONEYWELL - VS8190A1033
• HONEYWELL - VS8190A1041
• HONEYWELL - VS8190A1058
• HONEYWELL - VS8190A1074
• HONEYWELL - VS8190A1082
• HONEYWELL - VS8190B1008
• HONEYWELL - VS8190B1016
• HONEYWELL - VS8190B1024
• HONEYWELL - VS8190B1032
• HONEYWELL - VS8190B1057
• HONEYWELL - VS8190B1065
• HONEYWELL - VS8194A1001
• HONEYWELL - VS8194A1019
• HONEYWELL - VS8194A1027
• HONEYWELL - VS8194A1043
• HONEYWELL - VS8194A1050
• HONEYWELL - VS8194A1068
• HONEYWELL - VS8194A1076
• HONEYWELL - VS8194A1084
• HONEYWELL - VS8194B1018
• HONEYWELL - VS8194B1026
• HONEYWELL - VS8194B1067
• HONEYWELL - VS8194B1083
• HONEYWELL - VS8194B1109
• HONEYWELL - VS8194E1007
• HONEYWELL - VS8194E1049
• HONEYWELL - VS8194E1130
• HONEYWELL - VS8194E1137
• HONEYWELL - VS8194E1189
• HONEYWELL - VS8194E1239
• HONEYWELL - VS8194E1254
• HONEYWELL - VS8194E1288
• HONEYWELL - VS8194E1296
• HONEYWELL - VS8194E1312
• HONEYWELL - VS8194E1320
• HONEYWELL - VS8194E1346
• HONEYWELL - VS8194E1353
• HONEYWELL - VS8194F1014
• HONEYWELL - VS8194F1022
• HONEYWELL - VS8194F1063
• HONEYWELL - VS8194F1071
• HONEYWELL - VS8194F1121
• HONEYWELL - VS8194F1188
• HONEYWELL - VS8194F1196
• HONEYWELL - VS8194F1220
• HONEYWELL - VS8194F1238
• HONEYWELL - VS8204A1024
• HONEYWELL - VS8205A1005
• HONEYWELL - VS8205A1021
• HONEYWELL - VS8205A1039
• HONEYWELL - VS8205A1049
• HONEYWELL - VS8205A1054
• HONEYWELL - VS8205A1062
• HONEYWELL - VS8205B1004
• HONEYWELL - VS8205B1012
• HONEYWELL - VS8205B1020
• HONEYWELL - VS8205B1038
• HONEYWELL - VS8205B1053
