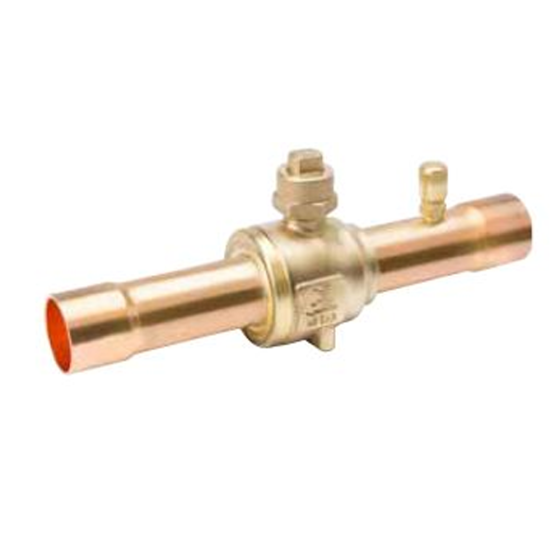

7/8" Ball Valve with Access Valve
Item
AQ17864C
FEATURES & BENEFITS
• Connection Size: 7/8"
• Cv: 27.50
• Kv: 24
• Port: 0.75 in
• MAP: 53 bar775 psi
• Seal Cap Kit: A 17843
• Operating Temperature [Min]: -40 ºC-40 ºF
• Operating Temperature [Max]: 149 ºC300 ºF
• Reference Indication: Standard product offering includes drilled/ tapped feature
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 2.000000 |
