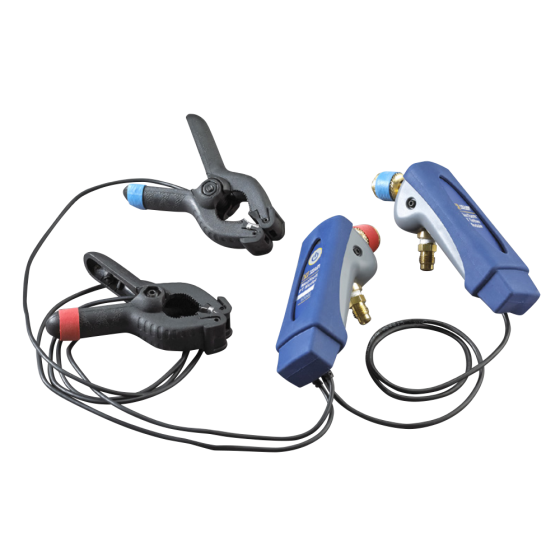

Yellow Jacket® ManTooth™ Wireless Digital Dual Tethered Pressure/Temperature Gauge Set

FEATURES

The YELLOW JACKET® ManTooth® Wireless Digital Pressure/Temperature Gauge provides wireless connection to your smart device so you can test the system without losing refrigerant (no hoses or manifolds necessary)!

The free downloadable ManTooth® RSA app wirelessly calculates and displays the system’s actual pressures, temperatures, superheat and subcooling in an easy-to-read color format on your iPhone®, iPad® or Android™ device.

• Built-in Schrader ports to easily adjust refrigerant charge
• Range up to 400’ (unobstructed)
• YELLOW JACKET® ManTooth® RSA app (free download)
• Two-year warranty
• Screenshot feature allows you to save pressure and temperature readings from your sessions which can be automatically organized by location and unit being serviced
• Share screenshots via e-mail right from your phone
• Easily track and store service history
• Rechargeable lithium polymer battery with 10 hours battery life

SPECIFICATIONS

• Pressure Sensing Resolution: 0.1 psi, 0.1 bar, 1 kPa, 0.001 MPa, 0.01 kg/cm2
• Pressure Sensing Accuracy: 0.5% of full scale at 25°C; 1% of full scale 55°F to 130°F; 2% of full scale -40°F to 248°F
• Working Pressure: 0 – 700 psia (48.3 bar)
• Proof Pressure: Tolerable pressure without internal damage 1000 psia
• Burst Pressure: Tolerable pressure without loss of seal 1500 psia

• Temperature Sensor Range (Instrument)
Sensing element: -40°F to 266°F (-40°C to 130°C)
Max Cord temp: 176°F (80°C);
Max Clamp Temp: 203°F (95°C)

• Temperature Display Resolution: 0.1°F or °C
• Temperature Accuracy (Instrument): ±0.2°C (±0.36°F)
• Working Temperature: -4°F to 160°F (-20°C to 71°C)
• Storage Temperature: -4°F to 160°F (-20°C to 71°C)
• Working Humidity: 0-95% RH (non-condensing)
• IP Class: IP 50
• Battery Life: 10+ hours continuous
• Range: 70-90 ft. (Class 1) or 30-40 ft. (Class 2) in most cases (varies depending on the Bluetooth capability of smart device used). Under perfect conditions (clear line of sight and low interference) communications can extend up to 300 feet.
• Bluetooth Radio: Class 1 Bluetooth 2.1 Radio
• Size: 6” long x 1.6” wide x 2.3” thick (15.3 x 4 x 5.8 cm)
• Weight: 0.5 lbs (225 grams)
• Superheat and Subcool: Automatically calculated by the ManTooth App
• Max. and Min. Pressures: Displays and records the max and min pressures
• Refrigerant Database: 98 NIST refrigerant profiles included; upgradeable
• Screenshot Feature: Save pressure and temperature readings from your sessions which can be automatically organized by location and serviced unit
• Temperature Sensors: Capable of measuring 2 temperatures using high accuracy NTC thermistors
• Pressure Transducers: 2
• System Attachment: Very small internal volume minimizes refrigerant loss during system analysis.
• Pressure Zeroing: Simple single button zeroing at the start of each session
• Elevation Compensation: Enter at start of session for effortless psia compensation
• Battery: Rechargeable LiPo battery
