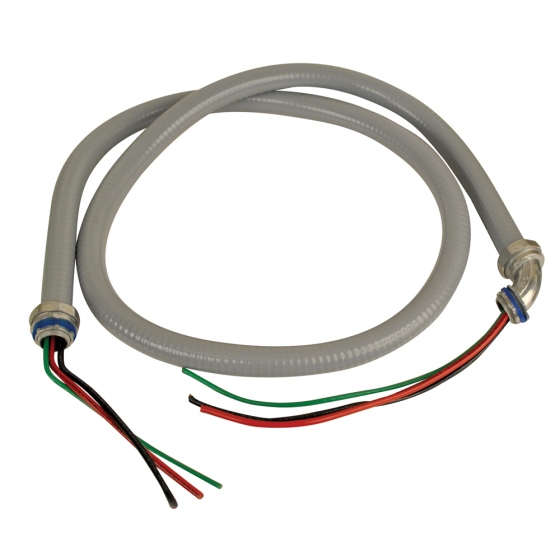

FEATURES & BENEFITS
• Non-Metallic Conduit with Metallic fittings, 18 to 20 in. Leads on each end
• Resists corrosion, abrasion, oil, water, acid, metal shavings, & rough environments
• Resists abuse, pull & crushing
• Made with UL approved Components
• Outdoor, sunlight resistant
• Smooth inside for easier wire pulling, no hazardous sharp edges or burrs, will not damage conductors
• Light weight & Quick installation
• Diameter (in.): 3/4
• Type: Non-Metallic Liquid-Tight Flexible Conduit
• Conduit Type: Non-Metallic Conduit / Metallic fittings
• Conductor AWG: #8 Gauge THHN (#10 Ground)
• No. of Conductors: 3
• Standards: Type B U.L.
• Length (ft.): 6
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Fitting Size | 3/4" | Wire Gauge | 8 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 10.000000 |
