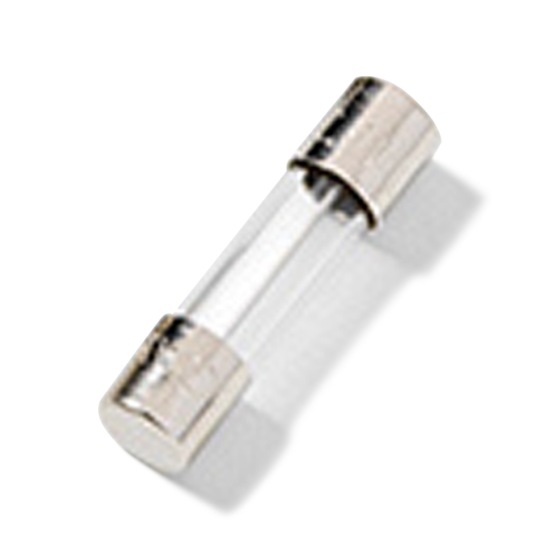

The 312 Series Fuse is a 3AG Fast-Acting fuse that solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
FEATURES & BENEFITS
• In accordance with UL Standard 248-14 • Available in cartridge and axial lead format and with various forming dimensions • RoHS compliant and Lead-free • Interrupting Rating: 200A@250Vac, 10KA@125Vac • Nominal Cold Resistance (Ohms): 0.0224 • Nominal Melting I2 t (A2 sec): 50.0
