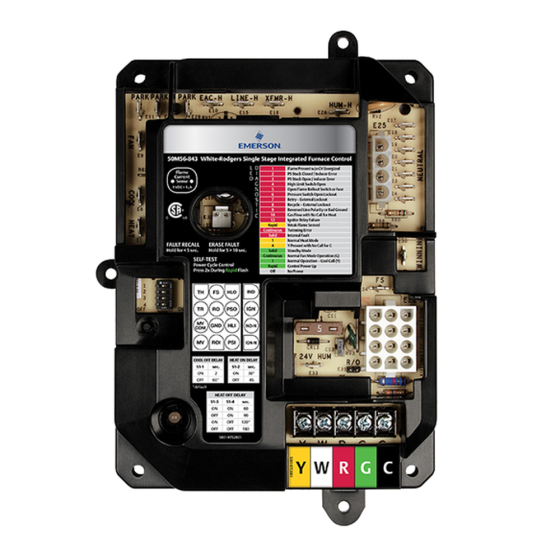

Integrated Furnace Controls Universal Replacement
Item
50M56U-843
FEATURES & BENEFITS
• Reduces inventory by providing maximum control replacement coverage
• Models include a universal 120V nitride ignitor to allow replacement of 80V and 120V controls
• Simple pushbutton fault recall with Tri-Color LED indicators streamline installation and system troubleshooting
• 75% of all applications install without adapter harnesses
• 120V air cleaner output and 24V or 120V humidifier output up to 1 Amp max
• Replaceable automotive style fuse
• Multiple Input Voltages: 24 Vac, 120 Vac, 50/60 Hz
• Amp Rating: 14.5 FLA-25.0 LRA @ 120 Vac (Circulator Relay)
• Operating Humidity: 5% to 93% relative humidity (non-condensing)
• Accessories: Includes Ignitor
• Approvals: CSA (Canada & US)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2.21 | Exterior Dimensions (D) (inches) | 6.880000 | Exterior Dimensions (W) (inches) | 5.190000 | Exterior Dimensions (H) (inches) | 1.280000 | Shipping Weight (lbs) | 5.000000 |
