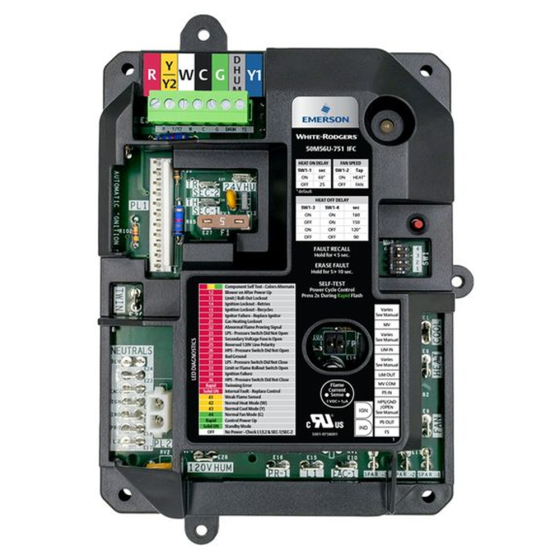

Carrier Direct Replacement Integrated Furnace Control
Item
50M56U-751
FEATURES & BENEFITS
• Direct OEM replacements designed for high volume major brand controls.
• Models include PSC, Variable Speed and ECMx motor control.
• Diagnostic LED indicators streamline installation and system troubleshooting.
• 120V air cleaner output and 120V humidifier output up to 1 Amp max.
• Factory standard safety timings and adjustable fan delay options.
• Replaceable automotive style fuse.
• Stages: Single Stage
• Ignition Type: HSI
• Ignitor Voltage: 120 Vac
• Inducer Motor/Blower Motor: PSC/PSC
• Blower Motor: Speed Taps: Lo Heat (Fan), Hi Heat, Cool
• Thermostat Inputs: R,C,W,Y/Y2,Y1,G,DHUM
• Accessories: Includes Wiring Accessories
• Twinning: Yes
• Communicating System: No
• Mounting Options: Flush Mount
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.53 | Exterior Dimensions (D) (inches) | 5.900000 | Exterior Dimensions (W) (inches) | 4.950000 | Exterior Dimensions (H) (inches) | 1.260000 | Shipping Weight (lbs) | 2.000000 |
