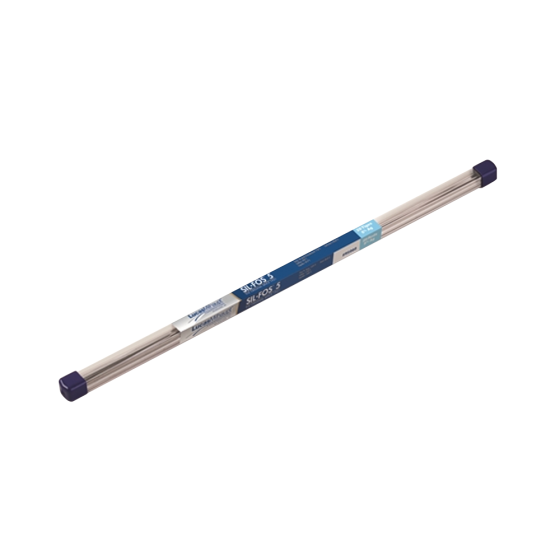

LucasMilhaupt® SIL-FOS® 5 Brazing Rods Copper to Copper/Brass .125" x .050" x 20" (28 pk)

Item
5-SILVERROD
  • California Prop 65

APPLICATIONS

Sil-Fos 5 is a silver-copper-phosphorus alloy for copper-copper brazing but can also be used to join brass with an appropriate flux (e.g. Handy Flux, Ultra Flux). It is a more cost effective Ag-Cu-P alloy, though it does not penetrate deep joints easily.

FEATURES

• Sil-Fos 5 and was developed primarily for use on copper, but its use has extended to other nonferrous copper base alloys. It is used extensively on refrigeration units, air conditioning apparatus, electrical conductors, copper and brass pipe fittings, and other copper and brass equipment.
• Joins CU to CU (phosphorus serves as flux)
• Joins CU to Brass (flux is recommended)
• Lower cost alternative to higher silver content Ag-Cu-P alloys
• Medium flow
• Made in USA

NOMINAL COMPOSITION
Silver 5.0% ± 0.2%
Copper 89.0% ± 1.0%
Phosphorus 6.0% ± 0.2%
Other Elements (Total) 0.15% Max

PHYSICAL PROPERTIES
Color: Gray
Melting Point (Solidus): 1190ºF (643ºC)
Flow Point: 1325ºF (718ºC) (The true liquidus for Sil-Fos 5 is 1495°F (813°C). The alloy will flow freely and make strong joints at 1300°F (705°C).
Brazing Temperature Range: 1325ºF-1500ºF (718°F-815°F)
Specific Gravity: 8.13
Density (lbs/in3): 0.294
Electrical Conductivity (%IACS): 9.60
Electrical Resistivity (Microhm-cm): 18.1

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3
Exterior Dimensions (D) (inches) 20.000000
Exterior Dimensions (W) (inches) 0.130000
Exterior Dimensions (H) (inches) 20.000000
Shipping Weight (lbs) 3.000000
