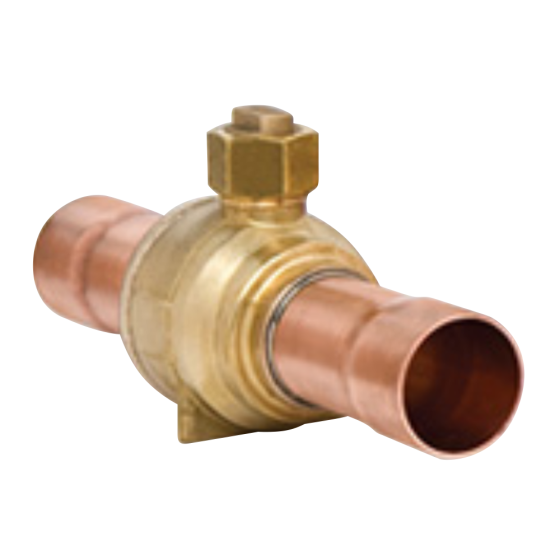

5/8" Multi-Split Ball Valve (ODS - Unibody)
Item
A18574U
FEATURES & BENEFITS
• Connection Size: 5/8" ODS
• Design Pressure (DP) / Maximum abnormal pressure(MAP): 775psig, 53bar
• Continuous operating temperature (COT): ‐40°F/300°F, ‐40°C/149°C
• Full port construction to match line size ID
• Internally equalized ball design
• Rupture‐proof encapsulated stem
• MCM Seal Technology
• UL/cUL Listed, Conforms to Pressure Equipment Directive 2014/68/EU,CRN0C1241.9C
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 2.000000 |
