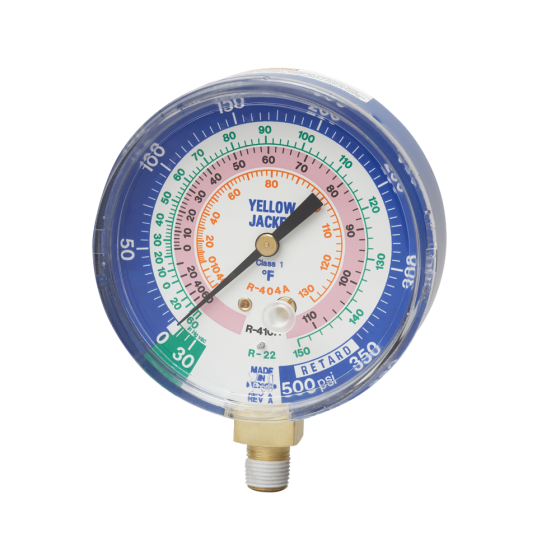

Yellow Jacket® 3-1/8" (80mm) Dry Compound Gauge (°F) 1/8" NPT Male, 350 psi (R22, R404a, R410a - Blue)
Item
49138
FEATURES
• With 1% accuracy (Class 1) calibration. Large 3-1/8″ gauges are housed in a red or blue steel case with front recalibrator screw. High visibility colored temperature scales are easy to read through the full view polycarbonate crystal.• Flutterless™ technology with brass surge protector to minimize needle pulsation
• Brass gauge movement
• Copper alloy Bourdon tube
• 1/8″ NPT Male connection
• Calibrated to 1% accuracy
• Color-coded red for pressure and blue for compound
• Color-coded refrigerant types
| Specification | |
|---|---|
| Fitting Size | 1/8" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.464 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 1.500000 | Shipping Weight (lbs) | 1.500000 |
