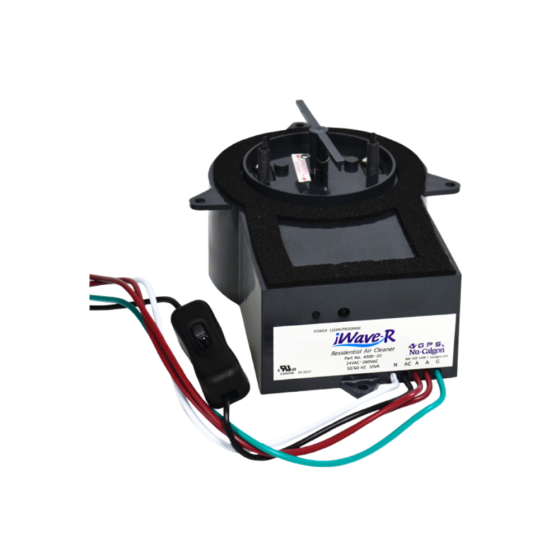

iWave-R Air Ionization System 24-230Vac, 2,400CFM (Residential)

APPLICATIONS

With technology installed in over 200,000 applications, iWave-R is the world’s first self-cleaning, no maintenance needlepoint bi-polar ionization generator designed specifically for treating air in residential duct A/C systems. As the air flows past the iWave-R, positive and negative ions actively treat the supply air, reducing certain bacteria and viruses in the coil and living space. The ionization process also reduces smoke and static electricity, as well as controlling odors (cooking, pet, VOCs) and other particles (no more sunbeams) in the air. iWave-R is validate to meet UL 867 ozone requirements.

iWave-R treats the air in any brand of residential duct air conditioning systems up to 6 tons (2400 CFM) in size with no maintenance and no replacement parts. Designed for universal mounting, the iWave-R is easy to install inside or outside of duct, or can be attached magnetically near the indoor fan in the air handler. Simply connect to power using its patented multi-voltage input capability. Install between air filter and cooling coil to treat the indoor coil; as an alternative, the iWave-R can be installed in the supply air. iWave-R always works at peak performance, producing over 160 million ions/cc per polarity (320 million total ions/cc), more than any other ionizer product on the market. Its patent-pending self-cleaning design includes a programmable cleaning cycle that can clean the emitter brushes every 1, 3, 5 or 10 days. The iWave-R is factory set to clean every third day which is adequate for a typical installation.

Three Year Limited Warranty Nu-Calgon offers a three year limited warranty on iWave products. For a valid warranty claim within three years, proof of purchase and proof of installation by a licensed HVAC or Electrical contractor must be provided. See full warranty at iwaveair.com for complete details.

FEATURES & BENEFITS

• Patented self-cleaning design ensures ongoing peak performance (Factory set to clean every third day. Can be reprogrammed in the field to clean every day)
• Needlepoint ionization actively treats air in the living space
• For duct systems up to 6 tons (2400 CFM)
• iWave is validated to meet UL 867 ozone requirements
• No maintenance for the life of the iWave
• Easily installs in minutes in A/C system
• Input Voltage: 24Vac - 240Vac
• Power (VA): Less than 10 VA
• 60 Hertz
• Air Flow Capacity: 2400 CFM (up to 6 tons)
• Dimensions: 6" L x 4.8" W x 2" D
• Weight: 1 lb.
• Service Temp. Range: -40 °F to 160 °F
• Plasma Output: 160 million ions/cc per polarity (320million total ions/cc)
• Indication: Green LED “Power On” LED “Off” = No Power or Fault Alarm (Includes Optional Alarm Contact)
• Universal mounting with magnets
• Flexible design with no replacement parts
• Reduces certain bacteria and viruses*
• Reduces odors, smoke and other airborne particles
• Keeps coil cleaner
• Programmable cleaning cycle
• Alarm contact option for secondary notification
• UL and cUL recognized
• Three-year limited warranty
• Mounting: Duct, Internal AHU Wall or Fan Inlet
