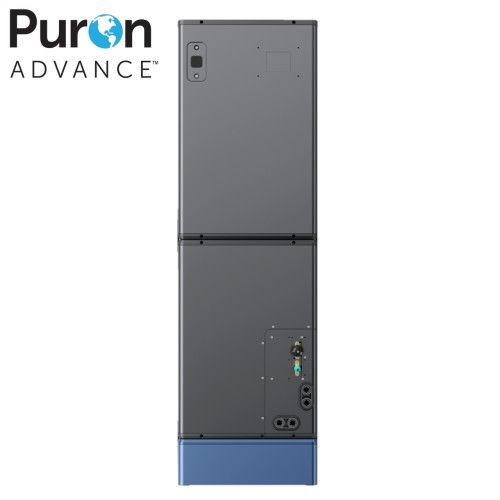

45MUHAQ Multi-Poised R454B Heat Pump Crossover Air Handler - Ductless System
Overview
Enjoy the benefits of a Carrier crossover system with the 45MUHA air handler. This unit can be installed in six different positions, providing you with versatility for your home. The 45MUHA has a variable-speed ECM motor that synchronizes with Carrier crossover heat pump models.
FEATURES & BENEFITS
FEATURES & BENEFITS
- Modes: Cool, Heat, Dry, Fan, Auto
- Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left, Low Boy)
- Sizes 18k, 24k, 30K, 36k, 48k and 60k
- Total system static pressure up to 1 in. W.C.
- Less than 2% air leakage
- Extremely quiet indoor operation
- Built-in third-party thermostat compatibility
- Anti-corrosive fin coating
- Available in 115/ 208/ 230V
- Modular design (coil, blower wheel and filter)
- Built-in 24V interface
- Conventional lineset
- Refrigerant leak detection system
- Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
- Optional Electric Heat Packages available (5 to 25 KW)
- Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited warranty upon registration1
1 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
SPECIFICATIONS
EFFICIENCY MANAGEMENT
- ENERGY STAR® Select sizes are ENERGY STAR® certified based on outdoor unit pairing
SOUND
- Quiet Levels As low as 33 dB(A)1
COMPATIBLE UNITS
- Models:37MUHA
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during low fan-speed operation
