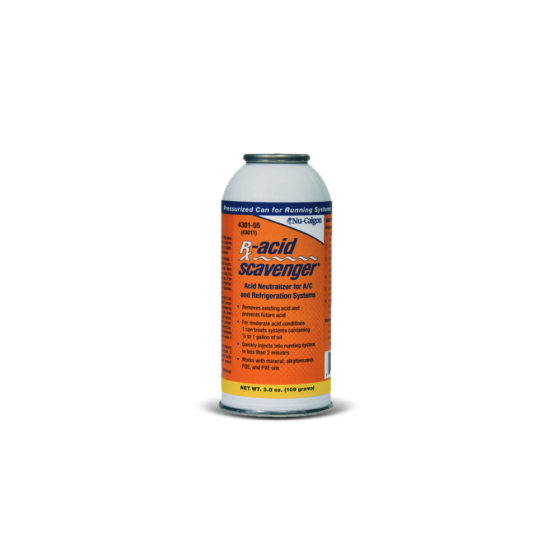

Nu-Calgon Rx-Acid Scavenger® Canister (Pressurized) 3.8 oz.

Item
4301-05
  • California Prop 65

APPLICATIONS

Acid neutralizer for air conditioning & refrigeration systems:
• For compressor burnout
• For system maintenance
One kit for all oils. Use with:
• Mineral oil
• Alkylbenzene oil
• POE oil
• PVE oil

FEATURES & BENEFITS

• Eliminates acid build-up in A/C and refrigeration systems
• Protects against future acid circulation
• Helps prevent compressor burnout
• Compatible with all oils and refrigerants (except ammonia)
• System safe - leaves no harmful by-products
• Rx-Acid Scavenger Connect Inject uses a quick one-time disposable injector
• Connect Inject version uses new formula to improve acid scavenging rate in POE lubricant systems
• The Rx-Acid Scavenger family of products provides a convenient way to neutralize or “scavenge” acid in refrigeration, air conditioning systems after burnouts or during normal on-going system maintenance. Normal dosage treatment of any Rx-Acid Scavenger product will address up to one gallon of system oil. All Rx-Acid Scavenger products are formulated for use with all lubricants - mineral, alkylbenzene, polyol ester (POE) and polyvinyl ether (PVE) lubricants. The traditional Rx-Acid Scavenger product uses a two fluid ounce treatment, whereas the new Rx-Acid Scavenger Connect Inject uses a new formulation to improve the acid scavenging rate in POE and PVE lubricant systems.

DIRECTIONS

If system’s low side pressure is BELOW 65 PSI while running:
• Shake can well. Make sure system is running and low side is below 65 psi.
• Be sure Injection Valve handle (4300-89) is turned fully counter clockwise and attach valve to can.
• Attach short charging hose to Injection Valve and other end to low side service port. Loosen valve slightly from can to purge air from hose and then re-tighten quickly.
• With can upright, open valve by turning handle clockwise and hold above low side service port to dispense.
• Allow approximately 1 minute for Rx-Acid Scavenger to completely enter the system.
• Once product is dispensed, remove hose from system. Retain hose and valve for future installations and dispose of can properly.

If system’s low side pressure is ABOVE 65 PSI while running:
• First pump the system down to achieve a low side pressure between 40 and 50 psi. Then, inject into the low side starting with step 2 above.

Specification
Capacity 3.8 oz.
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.5
Exterior Dimensions (D) (inches) 2.000000
Exterior Dimensions (W) (inches) 2.000000
Exterior Dimensions (H) (inches) 5.000000
Shipping Weight (lbs) 2.500000
