42C Airstream™ Horizontal Fan Coils
Item
42C
Horizontal Fan Coils
200 to 1,200 Cfm

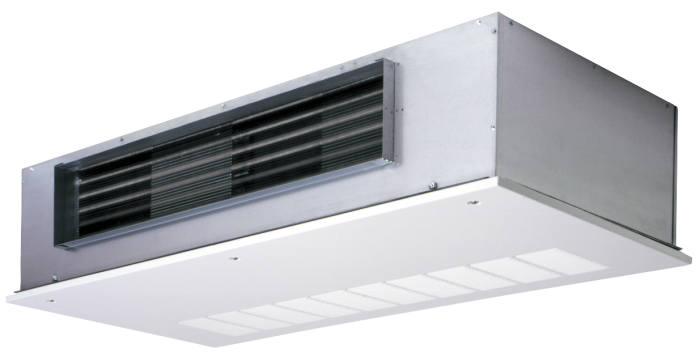

42CA - Furred-in
42CE - Furred-in with Plenum
42CG - Cabinet
42CK - Cabinet, Ducted
Ideal for installation in hotels, apartments, and other multi-room buildings, 42 series fan coils combine heating and cooling performance with easy, low-cost installation. The 42C units are designed to occupy a minimum space, using furred-in, painted cabinet, or telescoping bottom panel models. Custom colors allow the unit to blend with any interior design.
Performance Features
- Airflow capacities from 200 to 1200 Cfm
- 2-pipe or 4-pipe system combinations
- Economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load
- Optional electronically commutated motors deliver peak operating efficiency
- Sound-absorbing insulation is used to line the cabinet
- Certified performance in accordance with AHRI Standard 440
Reliability Features
- Coils are factory leak tested at 300 psig air pressure with coil submerged in water
- All equipment wiring complies with NEC requirements
- Base units are ETL certified for USA and Canada standards
- Unit casing meets UL 181 and NFPA 90A standards
- Units independently tested and certified in accordance with IBC and OSHPD for seismic applications
Maintenance Features
- Cleanable or throwaway filters available
- Removable panels make access to components and connections easy
- Label information adhered to each unit includes model, size, coil information, electrical information, and tagging data
- Condensate drain pans are available in stainless steel or heavy gage galvanized steel constructions, along with optional condensate overflow switches
Installation Features
- Piping, drain, and wiring connections are readily accessible
- Factory-installed controls
- Single point electrical connection
- Predrilled mounting holes and slots
- Compact unit casing accommodates installation in reduced ceiling plenum space
- Valve packages available
Standard Warranty
- One-year parts
| Unit Size 42C | 02 | 03 | 04 | 06 | 08 | 10 | 12 |
|---|---|---|---|---|---|---|---|
| Nominal Airflow Cfm | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 |
| Shipping Weight (lb.)* | |||||||
| 42CA | 36 | 39 | 49 | 59 | 64 | 95 | 107 |
| 42CE | 55 | 60 | 70 | 82 | 95 | 135 | 157 |
| 42CG | 98 | 118 | 126 | 168 | 176 | 215 | 245 |
| 42CK | 115 | 120 | 135 | 150 | 155 | 227 | 241 |
| Coil Water Weight (Approx. lb per row of coil) | 0.7 | 0.8 | 1.0 | 1.4 | 1.7 | 2.3 | 2.7 |
| Coils (fins per in.) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Coil Face Area (sq. ft.) | 0.8 | 1.1 | 1.4 | 1.9 | 2.3 | 3.2 | 3.7 |
| Motor (qty) 42C only | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Blower (qty) | 1 | 1 | 2 | 2 | 2 | 4 | 4 |
| Filters Nominal Size (in.) (1-inch thick) | |||||||
| 42CA | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 42CE† | 10 x 18 | 10 x 22 | 10 x 28 | 10 x 33 | 10 x 40 | 10 x 54 | 10 x 62 |
| 42CG (bottom return) | 10 x 23½ | 10 x 28 | 10 x 32½ | 10 x 37 | 10 x 41 | 10 x 54½ | 10 x 63 |
| 42CG (rear return) | 8 x 23½ | 8 x 28 | 8 x 32½ | 8 x 37 | 8 x 41 | 8 x 54½ | 8 x 63 |
| 42CK (bottom return) | 10 x 28 | 10 x 28 | 10 x 33 | 10 x 45 | 10 x 45 | 10 x 62 | 10 x 62 |
| 42CK (rear return) | 7 x 21 | 7 x 21 | 7 x 27 | 7 x 38 | 7 x 38 | 7 x 52 | 7 x 52 |
| Qty | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Supply Duct Collar | 1-in. | 1-in. | 1-in. | 1-in. | 1-in. | 1-in. | 1-in. |
| Piping Connections (Sweat) (in.) | |||||||
| Coil Outlet and Inlet | ⅝OD | ⅝OD | ⅝OD | ⅝OD | ⅝OD | ⅝OD | ⅝OD |
| Drain Connection | ⅞OD | ⅞OD | ⅞OD | ⅞OD | ⅞OD | ⅞OD | ⅞OD |
| Tell-Tale Drain | ⅝OD | ⅝OD | ⅝OD | ⅝OD | ⅝OD | ⅝OD | ⅝OD |
*Calculate operating weight of unit: shipping weight + coil water weight x number of coil rows.
†Filter size if located in return-air plenum.
Factory-Installed Options
- 3-speed switches
- Line voltage thermostats
- 24V Carrier Debonair® programmable or non-programmable thermostats
- Product Integrated direct digital electronic controls (i-Vu® control system using BACnet protocol)
- Chilled water or direct expansion cooling coils
- Hot water or steam heating coils
- Total or auxiliary electric heat
- Service switches
- Custom colors
- Permanent or throwaway filters
- Automatic air vent and drain on water coils
- Double deflection discharge grilles
- Tell-tale drains and stainless steel drain pans
- Condensate overflow switch
- Dual density fiberglass, foil faced fiberglass or closed cell insulation
- PSC, High Static PSC, or ECM motors
- Seismic certified construction (OSHPD & IBC)
Field-Installed Accessories
- Remote mounted thermostats
- Valve packages factory wired and assembled for field mounting
- Drip lips for collection of condensate under valve packages
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
