24V Interface

Item
40VM900008
  • California Prop 65

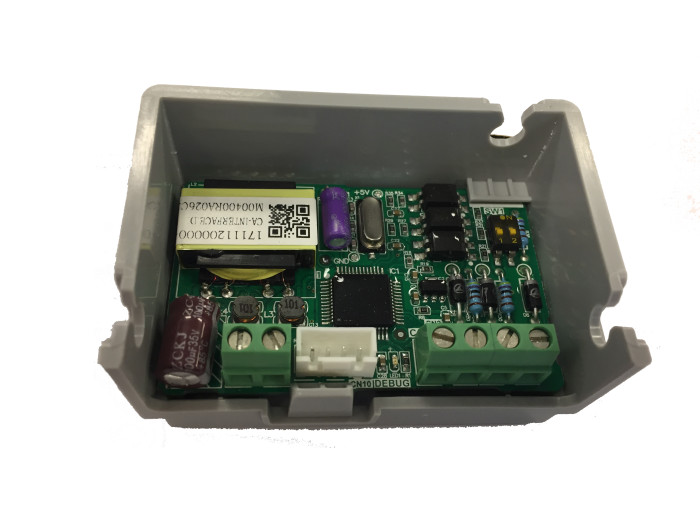

The 24V Interface for Carrier VRF (Variable Refrigerant Flow) systems is a device that enables the use of a conventional 24VAC thermostat with indoor units. The Interface receives 24VAC signals for Cool, Heat, and Fan. This translates these commands to the system's communication protocol and sends the commands to indoor unit over the HA / HB communication bus.

Product Features

  • One interface per indoor unit
  • Cool / Heat / Fan inputs
  • Indoor use only

Installation Features

  • Interface is powered from field-supplied 24VAC power
  • Should be installed in a junction box
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.31
Exterior Dimensions (D) (inches) 2.875000
Exterior Dimensions (W) (inches) 1.250000
Exterior Dimensions (H) (inches) 1.875000
Shipping Weight (lbs) 1.000000
