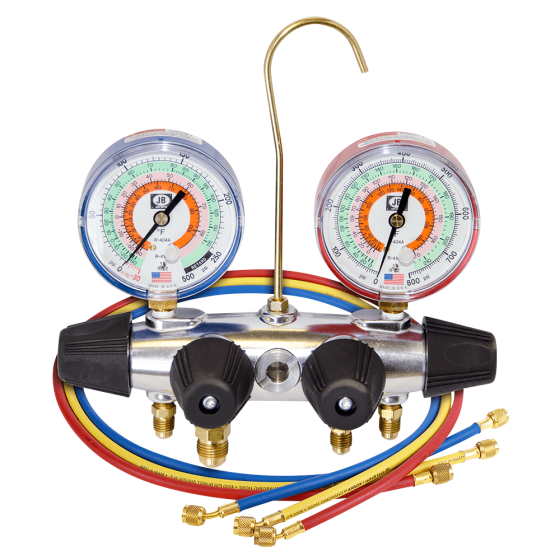

4-Valve Aluminum Manifold

Item
25233
  • California Prop 65

The American made 4-valve aluminum Zeppelin® series of manifolds features a durable molded “soft grip” rubber handles with fingertip grooves that ease opening and closing while the improved stem design means “full open” in only 2½ turns. The aluminum Zeppelin® series, available in 2- and 4-valve, also incorporates cutting edge styling and technology to significantly reduce the weight of the manifold.

25233 Features:

• Surge dampened gauges for reduced needle movement

• Glow in the dark 3-1/8” gauges R-22, R-404A, R-410A

• Original free floating dual o-ring sealing system for faster evacuation/charging

• Full 3/8” bore evacuates 40% faster than the competing 4-valve manifold

• Replaceable intake/hose holder fittings for storage (on back)

• Sight glass standard

• Color coded refrigerant dials for easy reading

• Pull-out proof hanging hook

• Precisely machined anodized aluminum body

• Soft grip rubber hand wheels reduce turning to open/close

• Heavy-duty forged aluminum body is rugged and durable

• Includes 60" (152 cm) CCLE Kobra® hose set

• Made in the USA

Safety Standards
California Prop 65 Yes
Hazardous Material No
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 6.0000
Exterior Dimensions (W) (inches) 4.0000
Exterior Dimensions (H) (inches) 12.0000
Shipping Weight (lbs) 5.0000
