Mason Industries 3x3 Super W Waffle Pad, 3" x 3" x 3/4", 450lbs. per Square

APPLICATIONS

There are many applications where machines are located in basements or other non-critical areas, where “some” isolation or a noise break is needed, or the use of a resilient friction pad eliminates the need for bolting down. These are the locations where pads are used on a “They serve the purpose” basis. The thickest is always best and Natural Rubber the most efficient.

FEATURES & BENEFITS

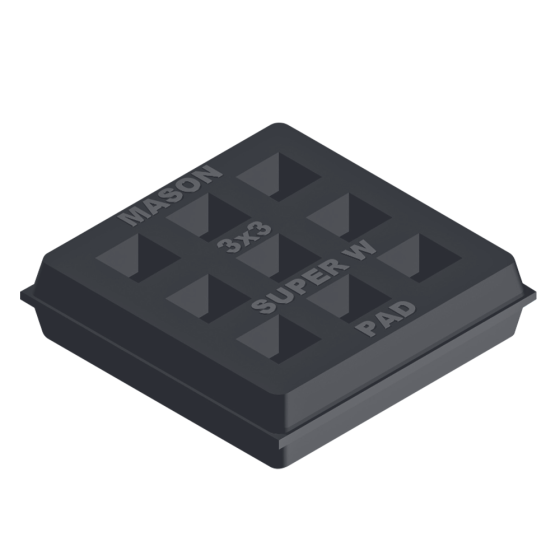

• The 3SW18X18R 3x3 Super W Pad consists of a single 3” (76mm) module. Our Super W pad is one of the most versatile and efficient pads on the market.
• Size (in): 3 x 3
• Duro-meter Standard: 50
• Recommended Maximum Load Deflection (in): 0.1125 (15%)
• Recommended Load per 3x3 Square (lbs): 450
• Recommended Load per Area (lbs/in²): 113
• Maximum Load per Area(lbs/in²): 150
