There are many applications where machines are located in basements or other non-critical areas, where “some” isolation or a noise break is needed, or the use of a resilient friction pad eliminates the need for bolting down. These are the locations where pads are used on a “They serve the purpose” basis. The thickest is always best and Natural Rubber the most efficient.
FEATURES & BENEFITS

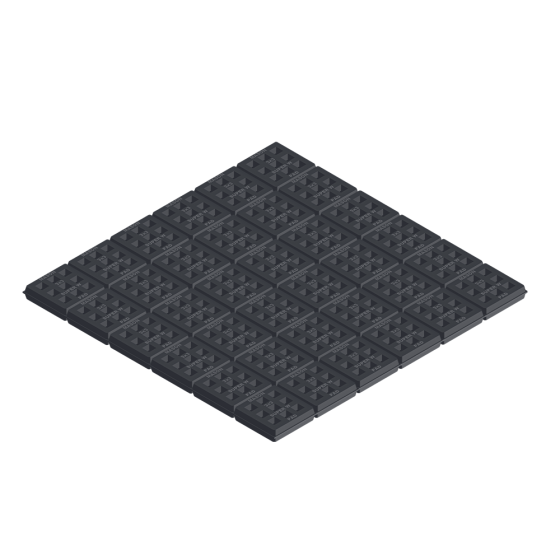

• The 3SW18X18R 3x3 Super W Pad consists of 36 3” (76mm) modules. The 3” (76mm) squares are separated by a thin web that is easily cut to provide evenly dimensioned pads such as 3” x 3” (76 x 76mm), 3” x 6” (76 x 152), 6” x 6” (152 x 152mm), 9” x 12” (228 x 304 mm), etc. Our Super W pad is one of the most versatile and efficient pads on the market. • Size (in): 18 x 18 • Duro-meter Standard: 50 • Recommended Maximum Load Deflection (in): 0.1125 (15%) • Recommended Load per 3x3 Square (lbs): 450 • Recommended Load per Area (lbs/in²): 113 • Maximum Load per Area(lbs/in²): 150
