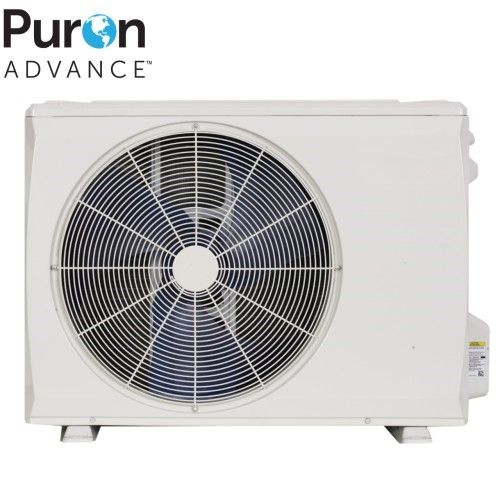

37MPRAQ Single Zone DFS Heat Pump Condenser, R454B
Overview
When paired with the 45MPHAQ indoor unit, this system has SEER2 rating up to 35.1 with 30 HSPF2, making it ENERGY STAR® certified. The ultra-efficient 37MPRAQ outdoor unit with a built-in basepan heater offers year-round comfort. Its impressive cooling operating range maintains consistent capacity from -22° F to 122° F. On the other end of the spectrum, the systems high heating capability is exceptional, running 100% to -22° F to 86° F temperature range. No matter the temperature outside, this system can handle the extremes.
FEATURES & BENEFITS
FEATURES & BENEFITS
- 100% Heating Capacity at 0° F (-17° C)
- 100% Cooling capacity at -22° F (-30° C) without additional kit
- Up to 75% of Heating Capacity at -22° F (-30° C)
- Inverter Compressor
- Up to 35.1 SEER2 cooling efficiency
- Up to 30 HSPF2 heating efficiency
- Available in 208/230V
- Sizes: 06 / 09 / 12 /18
- Built-in basepan heater
- Auto-restart function
- Refrigerant leakage detection
- Extremely quiet outdoor operation, as low as 57 dB(A)1
- Anti-corrosive fin coating
- With Puron Advance™ refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
1Quietest size within each model group during most common cooling operating condition.
2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
SPECIFICATIONS
EFFICIENCY
- Up to 35.1 SEER2
- Up to 17.5 EER2
- Up to 30 HSPF2
PERFORMANCE
- Outdoor sound: as low as 57 decibels1
- OUTDOOR OPERATING RANGE
- Cooling operating range -22° ~ 122° F (-30° ~ 50° C)
- Heating operating range -22° ~ 75° F (-25° ~ 24° C)
LINE LENGTH
- Piping length 98 ft (30m)
TECHNOLOGY
- Inverter Compressor
CAPACITIES
- 0.5 – 1.5 Ton
REQUIREMENTS
- 208/230V
AESTHETICS
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
1 Quietest size within each model group during most common cooling operating condition.
