37MHRAQ Single Zone DFS Heat Pump Condenser, R454B

Grouped product items
Product Name
Nominal 3/4 Ton, R454B, Single Zone DFS Heat Pump Condenser, 115/1 MFR: Item: 37MHRAQ09AA1
Nominal 3/4 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MHRAQ09AA3
Nominal 1 Ton, R454B, Single Zone DFS Heat Pump Condenser, 115/1 MFR: Item: 37MHRAQ12AA1
Nominal 1 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MHRAQ12AA3
Nominal 1.5 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MHRAQ18AA3
Nominal 2 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MHRAQ24AA3
Nominal 2.5 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MHRAQ30AA3
Nominal 3 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MHRAQ36AA3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Overview

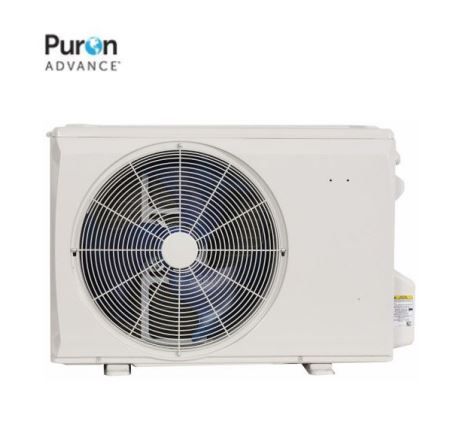

The 37MHRAQ heat pump lives up to our Comfort™ series name, delivering reliable heating and cooling. It’s the ideal solution for affordable, space-saving comfort. Properly matched with a Carrier high wall indoor unit, the 37MHRAQ can make all the difference in a room addition, converted space, or anywhere your ducted system leaves you less than comfortable.

FEATURES & BENEFITS

Sizes: 09 / 12 / 18 / 24 / 30 / 36
Available in 115V and 208/230V
Factory installed basepan heater
Auto-restart function
Condenser high-temperature protection
Extremely quiet outdoor operation, as low as 52.5 decibels1
Anti-corrosive fin coating
Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2

1 Quietest size within each model group during low fan-speed operation

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

SPECIFICATIONS

EFFICIENCY

Up to 22.4 SEER2
Up to 12.6 EER2
Up to 9.4 HSPF2

PERFORMANCE

Quiet outdoor operation, as low as 52.5 decibels1

OUTDOOR OPERATING RANGE

Cooling operating range 5° -122° F (-15° ~ 50° C)
Heating operating range 5° - 75° F (-15° ~ 25° C)

LINE LENGTH

Total piping length 82-263 ft. (25-65m)

TECHNOLOGY

Inverter Compressor

CAPACITIES

0.75 – 3.0 Ton

REQUIREMENTS

115V and 208/230V

AESTHETICS

Heavy-gauge, galvanized steel construction
Primed and coated with a 100% coverage, baked-enamel finish in white

1Quietest size within each model group during low fan-speed operation
