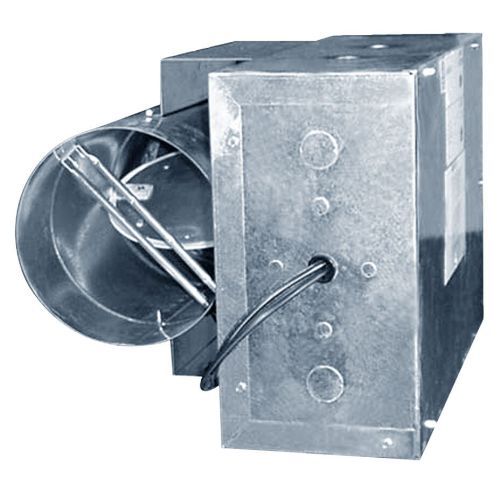

16" Round Damper w/ Pickups

Item
35JN16
  • California Prop 65

OVERVIEW

45 to 3,700 Nominal Cfm

The 35J round tube, single-duct unit provides cooling only to meet retrofit and special application needs. Terminal units are designed to allow maximum flexibility in configuration and control. The small size of the unit ensures an easy fit in all applications.

FEATURES

Performance Features

  • Airflow capacities from 45 to 3700 cfm
  • Round inlet sizes from 4 in. through 16 in. diameter
  • Rectangular inlet on size 22
  • 22 gauge, galvanized steel casing construction
  • Converts high-pressure mechanical constant volume systems to low-pressure variable volume systems
  • Linear, multiple-point, averaging velocity sensor with an amplified signal
  • Damper blade has a flexible gasket for tight airflow shutoff
  • Damper blade operates over a full 90°
  • All damper assemblies utilize a solid ½ in. shaft that rotates in self-lubricating Delrin® bearings
  • Pressure independent or dependent controls, including Carrier i-Vu Open (BACnet), Carrier Comfort Network® (CCN), analog, or pneumatic controls

Reliability Features

  • Casings meet UL-181 and NFPA-90A requirements

Maintenance Features

  • NEMA 2 steel control enclosure for electric or electronic components
  • Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data

Installation Features

  • Factory-installed controls
  • All round collars accommodate standard spiral and flex duct sizes
  • Balancing taps provided for easy airflow verification

Standard Warranty

  • One-year parts

California residents please see Proposition 65


OPTIONS

Factory-Installed Options

  • Control options:
    • Analog electronic controls
    • Carrier i-Vu Open VAV or VVT controls
    • Carrier Comfort Network (CCN) VAV or VVT controls
    • Pneumatic controls
  • No controls or field-supplied DDC (direct digital controls) third party controls for factory mounting
  • Left-hand or right-hand control enclosure
  • 20 gauge, galvanized steel casing
  • 304 stainless steel casing

Field-Installed Accessories

  • Remote wall sensor
  • Supply-air temperature sensor
Safety Standards
California Prop 65 Yes
Hazardous Material No
Weights and Dimensions
Operating Weight (lbs) 45
Exterior Dimensions (D) (inches) 24.000000
Exterior Dimensions (W) (inches) 24.000000
Exterior Dimensions (H) (inches) 13.000000
Shipping Weight (lbs) 45.000000
