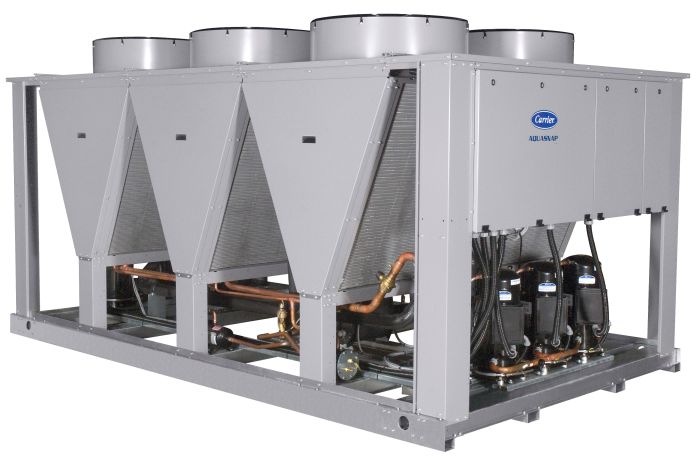

30RAP AquaSnap® Air-Cooled Liquid Chiller with Puron® Refrigerant (R-410A)
Item
30RAP
Air-Cooled Liquid Chiller with Puron® Refrigerant (R-410A)
10 to 150 Nominal Tons
11 to 60 Nominal Tons with Greenspeed® Intelligence
The AquaSnap 30RAP chiller is an effective all-in-one package that is easy to install and own. The chiller costs less to purchase and install than other chillers in its class, and operates quietly and efficiently. Value-added features include rotary scroll compression with optional digital compressor (010 to 090 units), Puron refrigerant (R-410A), a low-sound AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, optional integrated hydronic pump package, and an accessory fluid storage tank (sizes 010-060 only).
The 30RAP is now available with optional Greenspeed Intelligence for the sizes 011-060, delivering a quieter and much more efficient unit with IPLV up to 16.8.
Air cooled chillers within the scope of the ACCL certification program are certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org
Performance Features
- Full-load EER values up to 10.5 and IPLV values up to 15.8
- Greenspeed Intelligence option for sizes 011-060 can raise IPLV up to 16.8 and sound reduction up to 4dBA
- ASHRAE 90.1 compliant / AHRI 550/590 certified
- High-efficiency rotary scroll compressors including digital compressor unloading (factory-installed option for 010-090 units)
- Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils (factory-installed option)
- Hydronic pump package (factory-installed option) with optional VFD on sizes 070-150
- Operation from -20 to 120 F ambient temperature (factory-installed option or field-installed accessory on sizes 018-150 with low ambient head pressure control)
Reliability Features
- ETL (and ETL, Canada) listed
- Galvanized steel cabinet with baked enamel powder or pre-painted finish on exterior panels passes 500-hour salt-spray test in accordance with the ASTM B-117 Standard
- High and low-pressure protection/compressor overload protection
- Self-contained 24-v CCN (Carrier Comfort Network™) controls including transformer
- Hermetic scroll compressors and outdoor fan circuits are protected by circuit breakers or fuses
- EXV (electronic expansion valve)
Maintenance Features
- Over 15 diagnostic functions
- Permanently lubricated fan motor bearings
- Microchannel condenser coils offer simplified cleaning
Installation Features
- Factory-charged with Puron refrigerant (R-410A)
- All-in-one package
- Single-point electrical connection available on all sizes. Dual point electrical connection available on sizes 070-150
- Integral control transformer
- Fluid loop storage tank designed to fit directly under unit (field-installed accessory on sizes 010-060)
- On-the-ground or rooftop installation
Standard Warranty
- 3 year coil parts only on Novation microchannel heat exchanger
- One year from start-up or 18 months from shipment on all other parts
- Extended warranty packages available
30RAP AHRI* Capacity Ratings
| Size | Capacity | Compressor Power Input (kW) | Fan Power (kW) | Total Power (kW) | Full Load | IPLV | |||
|---|---|---|---|---|---|---|---|---|---|
| Tons | kW | EER | COP | EER | COP | ||||
| 010 | 10.5 | 36.8 | 10.7 | 1.2 | 12.0 | 10.5 | 3.1 | 14.2 | 4.2 |
| 015 | 14.0 | 49.2 | 15.6 | 1.3 | 16.8 | 10.0 | 2.9 | 13.2 | 3.9 |
| 018 | 16.1 | 56.6 | 15.6 | 3.0 | 8.6 | 10.4 | 3.0 | 14.5 | 4.2 |
| 020 | 18.8 | 66.1 | 19.1 | 2.9 | 21.9 | 10.3 | 3.0 | 14.5 | 4.2 |
| 025 | 23.4 | 82.3 | 24.5 | 2.8 | 27.4 | 10.3 | 3.0 | 15.3 | 4.5 |
| 030 | 27.6 | 97.1 | 30.9 | 2.7 | 33.6 | 9.9 | 2.9 | 14.8 | 4.3 |
| 035 | 34.4 | 121.0 | 35.9 | 3.8 | 39.7 | 10.4 | 3.0 | 14.9 | 4.4 |
| 040 | 38.9 | 136.8 | 42.3 | 3.8 | 46.1 | 10.1 | 3.0 | 15.3 | 4.5 |
| 050 | 47.3 | 166.3 | 53.1 | 3.8 | 57.0 | 10.0 | 2.9 | 14.7 | 4.3 |
| 055 | 51.8 | 182.2 | 56.4 | 5.3 | 61.7 | 10.1 | 3.0 | 14.6 | 4.3 |
| 060 | 56.0 | 196.9 | 60.8 | 5.3 | 66.2 | 10.2 | 3.0 | 14.5 | 4.2 |
| 070 | 68.9 | 242.3 | 75.0 | 6.4 | 81.4 | 10.2 | 3.0 | 15.2 | 4.5 |
| 080 | 77.4 | 272.2 | 82.3 | 7.6 | 89.9 | 10.3 | 3.0 | 15.5 | 4.5 |
| 090 | 84.0 | 295.4 | 90.2 | 7.6 | 97.8 | 10.3 | 3.0 | 15.8 | 4.6 |
| 100 | 98.0 | 344.7 | 106.8 | 8.9 | 115.7 | 10.2 | 3.0 | 15.5 | 4.5 |
| 115 | 111.8 | 392.2 | 120.0 | 10.2 | 130.2 | 10.3 | 3.0 | 15.6 | 4.6 |
| 130 | 125.1 | 440.0 | 136.8 | 11.4 | 148.2 | 10.1 | 3.0 | 15.5 | 4.5 |
| 150 | 136.9 | 481.5 | 149.3 | 12.7 | 162.0 | 10.1 | 3.0 | 15.2 | 4.5 |
| 080 | 77.4 | 272.2 | 82.3 | 7.6 | 89.9 | 10.3 | 3.0 | 15.5 | 4.5 |
| Size | Cooler Flow Rate | Cooler Water Pressure Drop | ||
|---|---|---|---|---|
| GPM | L/s | Ft Wg | kPa | |
| 010 | 25.1 | 1.6 | 13.7 | 40.9 |
| 015 | 33.5 | 2.1 | 15.7 | 46.8 |
| 018 | 38.6 | 2.4 | 15.6 | 46.5 |
| 020 | 45.2 | 2.9 | 14.2 | 42.4 |
| 025 | 56.3 | 3.6 | 17.8 | 53.1 |
| 030 | 66.3 | 4.2 | 20.9 | 62.3 |
| 035 | 82.5 | 5.2 | 13.2 | 39.4 |
| 040 | 93.4 | 5.9 | 13.8 | 41.2 |
| 050 | 113.5 | 7.2 | 19.1 | 57.0 |
| 055 | 124.2 | 7.8 | 17.6 | 52.5 |
| 060 | 134.4 | 8.5 | 20.5 | 61.2 |
| 070 | 165.4 | 10.4 | 19.6 | 58.6 |
| 080 | 185.7 | 11.7 | 21.2 | 63.4 |
| 090 | 201.6 | 12.7 | 22.7 | 67.9 |
| 100 | 235.2 | 14.8 | 22.0 | 65.8 |
| 115 | 268.4 | 16.9 | 23.6 | 70.5 |
| 130 | 300.2 | 18.9 | 23.6 | 70.5 |
| 150 | 328.7 | 20.7 | 24.3 | 72.6 |
| 080 | 185.7 | 11.7 | 21.2 | 63.4 |
LEGEND
COP = Coefficient of Performance
IPLV = Integrated Part Load Value
EER = Energy Efficiency Ratio
*Air Conditioning, Heating & Refrigeration Institute
NOTES
1. Based on AHRI-550/590 standard rating conditions. Ratings are for standard chillers only. Ratings do not include options.
30RAP AHRI* Capacity Ratings for units with Greenspeed Intelligence
| Size | Capacity | Compressor Power Input (kW) | Fan Power (kW) | Total Power (kW) | Full Load | IPLV | |||
|---|---|---|---|---|---|---|---|---|---|
| Tons | kW | EER | COP | EER | COP | ||||
| 011 | 9.7 | 34.1 | 9.8 | 1.2 | 11.0 | 10.6 | 3.1 | 16.8 | 4.9 |
| 016 | 13.6 | 47.8 | 14.9 | 1.3 | 16.1 | 10.1 | 3.0 | 16.2 | 4.7 |
| 018 | 16.1 | 56.6 | 15.6 | 3.0 | 18.6 | 10.4 | 3.0 | 16.0 | 4.7 |
| 020 | 18.8 | 66.1 | 18.9 | 2.9 | 21.7 | 10.4 | 3.0 | 15.9 | 4.7 |
| 025 | 23.4 | 82.3 | 24.2 | 2.8 | 27.0 | 10.4 | 3.0 | 16.4 | 4.8 |
| 030 | 28.3 | 99.5 | 30.7 | 2.7 | 33.4 | 10.2 | 3.0 | 16.3 | 4.8 |
| 035 | 34.4 | 121.0 | 35.9 | 3.8 | 39.7 | 10.4 | 3.0 | 16.2 | 4.7 |
| 040 | 38.9 | 136.8 | 42.3 | 3.8 | 46.1 | 10.1 | 3.0 | 16.3 | 4.8 |
| 045 | 43.4 | 152.6 | 48.2 | 3.4 | 51.6 | 10.1 | 3.0 | 16.5 | 4.8 |
| 050 | 48.5 | 170.6 | 53.1 | 3.8 | 56.9 | 10.3 | 3.0 | 16.5 | 4.8 |
| 055 | 51.8 | 182.2 | 56.4 | 5.3 | 61.7 | 10.1 | 3.0 | 16.0 | 4.7 |
| 060 | 56.0 | 196.9 | 60.8 | 5.3 | 66.2 | 10.2 | 3.0 | 16.0 | 4.8 |
| Size | Cooler Flow Rate | Cooler Water Pressure Drop | ||
|---|---|---|---|---|
| GPM | L/s | Ft Wg | kPa | |
| 011 | 23.3 | 1.5 | 11.9 | 35.6 |
| 016 | 32.5 | 2.0 | 11.2 | 33.4 |
| 018 | 38.4 | 2.4 | 15.5 | 46.3 |
| 020 | 45.2 | 2.9 | 14.2 | 42.4 |
| 025 | 56.3 | 3.6 | 17.8 | 53.1 |
| 030 | 67.8 | 4.3 | 19.6 | 58.5 |
| 035 | 82.5 | 5.2 | 13.2 | 39.4 |
| 040 | 93.4 | 5.9 | 13.8 | 41.2 |
| 045 | 103.7 | 6.5 | 15.4 | 46.0 |
| 050 | 116.0 | 7.3 | 19.9 | 59.4 |
| 055 | 124.2 | 7.8 | 17.6 | 52.5 |
| 060 | 134.4 | 8.5 | 20.5 | 61.2 |
LEGEND
COP = Coefficient of Performance
IPLV = Integrated Part Load Value
EER = Energy Efficiency Ratio
*Air Conditioning, Heating & Refrigeration Institute
NOTES
1. Based on AHRI-550/590 standard rating conditions. Ratings are for standard chillers only. Ratings do not include options.
30RAP Weights and Dimensions
| Size | Weight | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Units | Dual Pump Units | Length | Width | Height | ||||||
| lb | kg | lb | kg | in | mm | in | mm | in | mm | |
| 010 | 704 | 319 | 1029 | 467 | 66.5 | 1689 | 40.5 | 1029 | 66.5 | 1689 |
| 015 | 718 | 326 | 1043 | 473 | 66.5 | 1689 | 40.5 | 1029 | 66.5 | 1689 |
| 018 | 1125 | 510 | 1450 | 658 | 88.5 | 2248 | 40.5 | 1029 | 66.5 | 1689 |
| 020 | 1133 | 514 | 1458 | 661 | 88.5 | 2248 | 40.5 | 1029 | 66.5 | 1689 |
| 025 | 1242 | 564 | 1567 | 711 | 88.5 | 2248 | 40.5 | 1029 | 78.5 | 1994 |
| 030 | 1283 | 582 | 1608 | 729 | 88.5 | 2248 | 40.5 | 1029 | 78.5 | 1994 |
| 035 | 2163 | 981 | 2850 | 1293 | 88.5 | 2248 | 92.5 | 2350 | 66.5 | 1689 |
| 040 | 2185 | 991 | 2872 | 1303 | 88.5 | 2248 | 92.5 | 2350 | 66.5 | 1689 |
| 045 | 2238 | 1015 | 2925 | 1327 | 88.5 | 2248 | 92.5 | 2350 | 78.5 | 1994 |
| 050 | 2263 | 1026 | 2950 | 1338 | 88.5 | 2248 | 92.5 | 2350 | 78.5 | 1994 |
| 060 | 2375 | 1077 | 3062 | 1389 | 88.5 | 2248 | 92.5 | 2350 | 78.5 | 1994 |
| 070 | 3410 | 1547 | 4092 | 1856 | 150.6 | 3826 | 88.0 | 2236 | 77.8 | 1976 |
| 080 | 3641 | 1652 | 4390 | 1991 | 150.6 | 3826 | 88.0 | 2236 | 77.8 | 1976 |
| 090 | 3697 | 1677 | 4411 | 2001 | 150.6 | 3826 | 88.0 | 2236 | 77.8 | 1976 |
| 100 | 4690 | 2127 | 5374 | 2438 | 191.5 | 4864 | 88.0 | 2236 | 77.8 | 1976 |
| 115 | 5008 | 2272 | 5692 | 2582 | 191.5 | 4864 | 88.0 | 2236 | 77.8 | 1976 |
| 130 | 6451 | 2926 | 7135 | 3236 | 232.0 | 5893 | 88.0 | 2236 | 77.8 | 1976 |
| 150 | 6938 | 3147 | 7622 | 3457 | 232.0 | 5893 | 88.0 | 2236 | 77.8 | 1976 |
Factory-Installed Options
- Variable speed condenser fans (Greenspeed Intelligence)
- Hydronic pump package
- Condenser coil options:
- Microchannel:
- Non-coated
- E-coated
- Aluminum fins (available on 070-150):
- Non-coated
- Pre-coated
- E-coated
- Copper fins (available on 070-150):
- Non-coated
- E-coated
- Microchannel:
- Hot gas bypass (not available on sizes 010 and 015)
- Digital compressor (sizes 010-090)
- Non-fused disconnect (not available with dual point power or 208/230 V on sizes 100-150)
- Value sound fans
- Compressor sound blankets
- Ultra-low sound
- Security grilles/hail guards
- Alternate packaging options
- High short circuit current rating (not available with dual point power)
- BACnet Communication
- Motormaster® V low ambient control
- Freeze protection (cooler heater)
- Energy management module
- GFI convenience outlet
- Fluid loop expansion tank (sizes 010-060) and circuit setter provided with optional pump package
Field-Installed Accessories
- Fluid loop storage tank (sizes 010-060)
- Vibration isolation pads
- Chillervisor System Manager III
- Motormaster V low ambient control
- Remote enhanced display
- Energy management module
- Navigator display
- Touch Pilot display
- BACnet translator control
- LON translator control
- Low ambient head pressure control(field-installed accessory)
