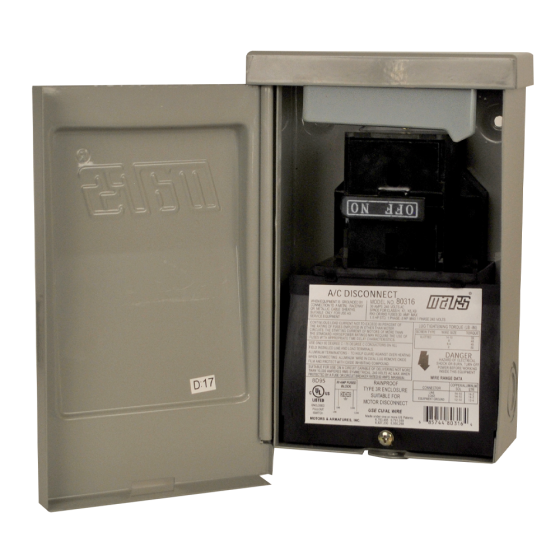

30A Fusible Disconnect with Internal Surge Protection, 240Vac, 1 Phase, NEMA 3R

Item

83916

FEATURES

• Contractor Friendly

• Unique Side Open Door

• Easy Access

• Patented Finger Safe Pullout Section

• Includes Internal Surge Protection MARS No 83910

• No. of Poles: 2

• Type: Top Open A/C Disconnect

• Amp Rating: 30 Amp

• Fused or Non-Fused: Fused

• Color: Gray

• Voltage Rating: 240

• Width (in.): 8.94

• Height (in.): 2.72

• Depth (in.): 5.55

• Side or Top Open: Side

• Enclosure Material: CRS Anti-UV Powder Coated Steel

• Outlet - GFI: No

• Phase: Single

• Standards: cULus approved for use in US and Canada

• NEMA Enclosure: Rain proof, NEMA 3R Enclosure

• NOTE: Includes Surge Protector 83910

Electrical
Phase	1
Voltage	240

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	30

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	6.000000
Exterior Dimensions (H) (inches)	9.000000
Shipping Weight (lbs)	5.000000
