30A Fusible Disconnect 240Vac, 1 Phase, NEMA 3R

Item

PD30F

Skip to the beginning of the images gallery

FEATURES

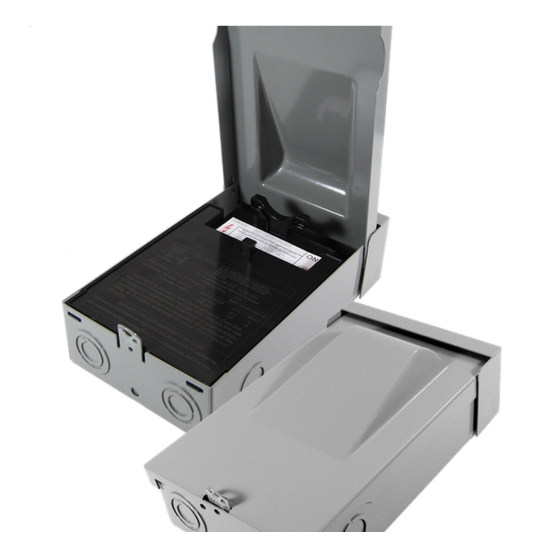

The Packard 30 Amp Fused Metal AC Disconnect - PD30F - is designed to stop power going to an air conditioner unit. Made with heavy gauge steel, this fused puller type disconnect allows for safe working conditions.

• Non-Fused Pullout

• Rated NEMA 3R for outdoor use

• Line, load, and ground terminals aligned for easy hook up with heavy wires.

• Full dead front

• Knockouts accommodate 3 sizes (1/2", 3/4", and 1")

• Rear, bottom, and side entry knockouts

• Heavy gauge steel case

• Large internal wiring space

• Individually wrapped in boxes of 6

• Folding pivot locking tab

SPECIFICATIONS

• Volts: 240

• cUL Listed: Yes

• Max Volts (V): 240

• UL Listed: Yes

• Amps: 30

• Fused / Non-Fused: Fusible

• Phases: Single

Specifications

Electrical
Phase	1
Voltage	240

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	30

Weights and Dimensions
Operating Weight (lbs)	3
Exterior Dimensions (D) (inches)	4.000000
Exterior Dimensions (W) (inches)	6.000000
Exterior Dimensions (H) (inches)	10.000000
Shipping Weight (lbs)	3.000000
