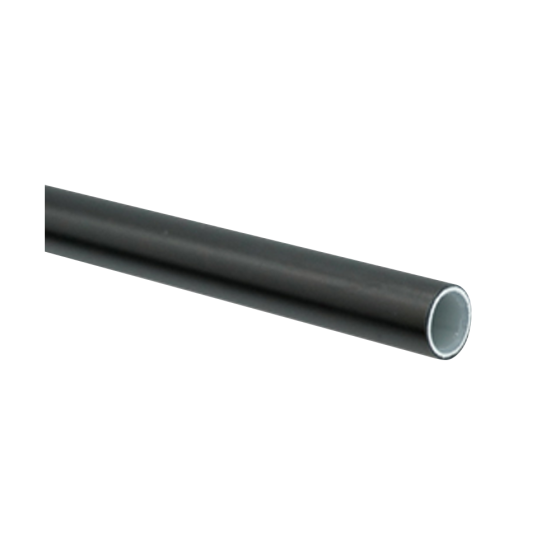

3/8"NPS x 50' Line Set

Item
P-5120
  • California Prop 65

APPLICATIONS

Python™ is a PERT-AL-PERT line set and compression fitting system designed for both split system and mini-split system applications. It is for use in HVAC systems for industrial, commercial and residential applications.

FEATURES & BENEFITS

• For HVAC Residential & Commercial Applications
• Lightweight: Half the Weight of Copper Pipe
• ICC-ES PMG-1675 Listed
• Product Tested and Listed to ASTM F3506-21: Standard Specification
• Chemical, UV & Kink Resistant
• No Need for a Torch on Site
• Maximum Design Pressure: 700psi
• Maximum Design Temperature: 203˚F
• ID & Flow Rates: Same as Copper Pipe
• Approved Refrigerants: R410a, R32, R454b
• Pipe Marked Every Foot

Safety Standards
California Prop 65 Yes
Specification
Fitting Size 3/8"
Length 50 ft.
Weights and Dimensions
Operating Weight (lbs) 15
Exterior Dimensions (D) (inches) 20.000000
Exterior Dimensions (W) (inches) 20.000000
Exterior Dimensions (H) (inches) 8.000000
Shipping Weight (lbs) 15.000000
