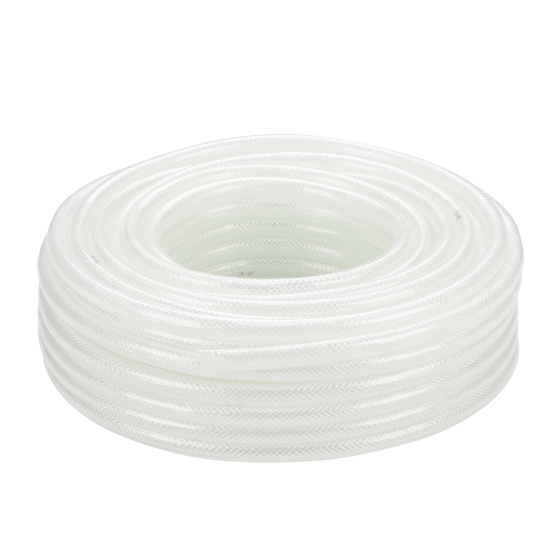

DiversiTech® Braided Vinyl Tubing 3/8", 100'
Item
7-38B
APPLICATIONS
Air conditioning and refrigeration condensate drains, condensate pump discharge lines and humidifier overflows.
FEATURES & BENEFITS
• Select DiversiTech® braided tubing over standard clear vinyl tube because the design is kink resistant, but the lightweight and flexible tubing can withstand rough handling and multiple usage while maintaining dimensional stability. Made of high-quality material with smooth interior and exterior that prevents sediment accumulation, allows easy flow & flushing and is easy to shape, bend and install.
• Diameter (ID): 3/8 in
• Length: 100 ft
• Clear Vinyl Chloride (PVC)
• Reinforced polyester caliber 300-500
• Extra rigid design resists crimping and kinking due to durometer value of 78-80 (shore A)
• Service Temperature 140° F (60° C)
| Specification | |
|---|---|
| Fitting Size | 3/8" | Length | 100 ft. |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 13.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 13.000000 | Shipping Weight (lbs) | 7.000000 |
