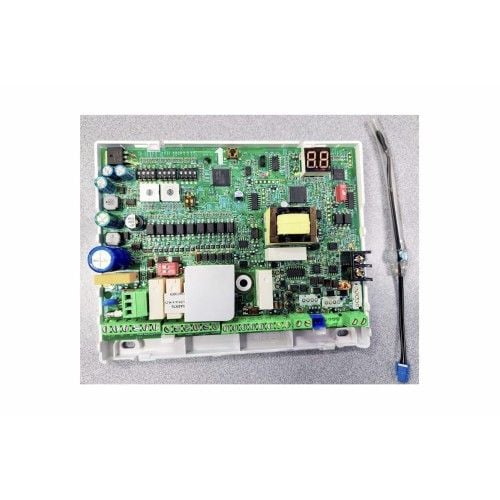

24V Crossover Interface Kit
Item
KSAIC0701230
Applications
- Designed for use with Crossover Heat Pumps and AHRI rated Carrier Residential furnaces and fan coils
- One 24V Interface to one indoor unit installation application
Compatibility
- Compatible with 37MUHA and 37MURA Crossover Heat Pumps
Device Connections
- S1/S2 port (2-wire) at CN17
Additional Connections
- Supports an optional 24V thermostat with DIP switch configuration (Factory Standard Setting)
24V Thermostat
- RT1 thermistor must be on the 24V Interface for proper temperature sensing
- Factory supplied RT1 thermistor extension wires (16ft)
RT1 Thermistor
- Designed for use with Crossover Heat Pumps and AHRI rated Carrier Residential furnaces and fan coils
- One RT1 Thermistor to one indoor unit installation application
Parts Included
• Installation/Owner’s Manual
• Screws M4*35 x 3
• Screws M4*16 x 4
• Wall Anchor x 3
• Return Air Thermistor Assembly (T1)
• Return Air Thermistor (T1) Assembly Extension Wire (16 ft (5m))
• Zip Ties x 3
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.800000 | Exterior Dimensions (W) (inches) | 6.400000 | Exterior Dimensions (H) (inches) | 5.200000 | Shipping Weight (lbs) | 2.000000 |
