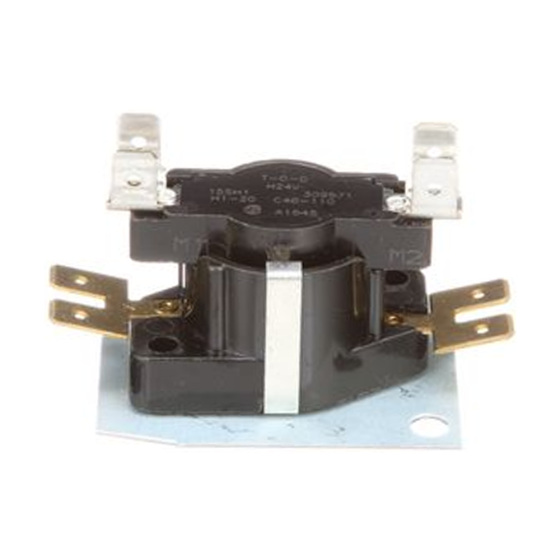

Electric Heat Sequencer, 2 Switch, 1 Timing

Item
24A34-3
  • California Prop 65

FEATURES & BENEFITS

• 24V input control
• Multi-poise mounting
• Any contacts (except M1 & M2) can be used as auxiliary contacts
• Double quick-connect terminals for combination loads
• Timings: 1 (note: some switch pairs turn ON or OFF simultaneously, consult instruction sheet for more detail)
• Switch Description: 2
• Timings-On In Seconds: 1 to 20 , Switch M3-M4
• Timings-Off In Seconds: 40 to 110, Switch M1-M2
• Timings-Off In Seconds: 40 to 110, Switch M3-M4
• Amperage: 14.0 FLA, 72.0 LRA, 25.0, 3000W Res at 120 Vac, 7.0 FLA, 42.0 LRA, 25.0, 6000W Res at 240 Vac, 12.5, 6000 Res at 480 Vac
• VA Output: 120 to 240 Vac 125 VA, 480 Vac 480 VA
• Ambient Operating Temperature Rating: From -50 to +165°F
• Approvals: U.L. component recognized
• Inductive (Motor) Full Load 120 Vac: 14.0A
• Inductive (Motor) Full Load 240 Vac: 7.0A
• Inductive (Motor) Locked Rotor 120 Vac: 72.0A
• Inductive (Motor) Locked Rotor 240 Vac: 42.0A
• Inductive (Motor) Locked Rotor 480 Vac: 25.0A, 3000W
• Inductive (Motor) Locked Rotor 480 Vac: 25.0A, 6000W
• Inductive (Motor) Locked Rotor 480 Vac: 12.5A, 6000W
• Pilot Duty: 120-240 Vac 125 VA, 480 Vac 480 VA
• Ambient Operating Temperature Rating: -50 to +165?F
• Agency: U.L. component recognized

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 2.000000
Exterior Dimensions (W) (inches) 2.000000
Exterior Dimensions (H) (inches) 2.000000
Shipping Weight (lbs) 1.000000
