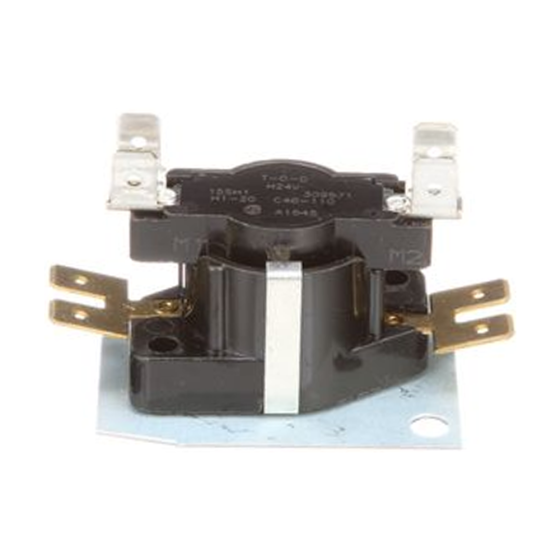

Electric Heat Sequencer, 3 Switch, 2 Timing

Item
24A34-5
  • California Prop 65

FEATURES & BENEFITS

• 24V input control
• Multi-poise mounting
• Any contacts (except M1 & M2) can be used as auxiliary contacts
• Double quick-connect terminals for combination loads
• Timings: 1 (note: some switch pairs turn ON or OFF simultaneously, consult instruction sheet for more detail)
• Switch Description: 2
• Timings-On In Seconds: 1 to 20 , Switch M3-M4
• Timings-Off In Seconds: 40 to 110, Switch M1-M2
• Timings-Off In Seconds: 40 to 110, Switch M3-M4
• Amperage: 14.0 FLA, 72.0 LRA, 25.0, 3000W Res at 120 Vac, 7.0 FLA, 42.0 LRA, 25.0, 6000W Res at 240 Vac, 12.5, 6000 Res at 480 Vac
• VA Output: 120 to 240 Vac 125 VA, 480 Vac 480 VA
• Ambient Operating Temperature Rating: From -50 to +165°F
• Approvals: U.L. component recognized
• Inductive (Motor) Full Load 120 Vac: 14.0A
• Inductive (Motor) Full Load 240 Vac: 7.0A
• Inductive (Motor) Locked Rotor 120 Vac: 72.0A
• Inductive (Motor) Locked Rotor 240 Vac: 42.0A
• Inductive (Motor) Locked Rotor 480 Vac: 25.0A, 3000W
• Inductive (Motor) Locked Rotor 480 Vac: 25.0A, 6000W
• Inductive (Motor) Locked Rotor 480 Vac: 12.5A, 6000W
• Pilot Duty: 120-240 Vac 125 VA, 480 Vac 480 VA
• Ambient Operating Temperature Rating: -50 to +165?F
• Agency: U.L. component recognized

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.25
Exterior Dimensions (D) (inches) 3.400000
Exterior Dimensions (W) (inches) 2.700000
Exterior Dimensions (H) (inches) 2.200000
Shipping Weight (lbs) 1.000000
