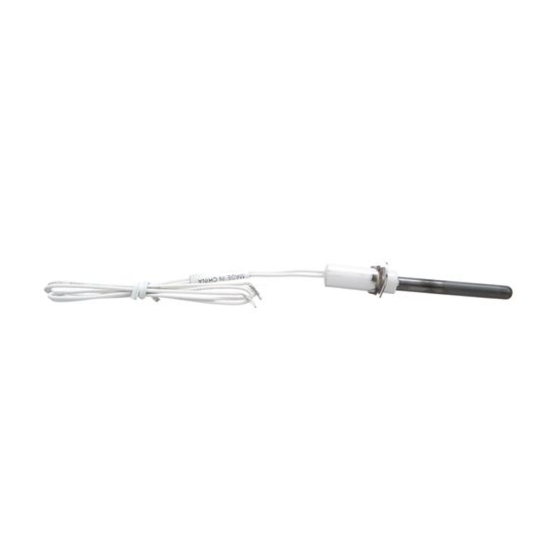

HotRod™ Series Universal Silicon Nitride Igniter Kit 120Vac 15.5" Leads
Item
21D64-2
APPLICATIONS
• For gas-fired forced air furnaces, boilers and water heater applications.FEATURES & BENEFITS
• Replaces most silicon carbide ignitors including many Carborundum™ carbide applicationsUpgrades HSI to durable nitride - used in premium OEM systems.• Extensive and up-to-date cross reference by OEM model number.
• Operating Voltage: 102-132 Vac, 60 Hz
• Max. Load Current: 3.0 A @ 132 VAC, 77°F
• Warm-Up Time: 17 sec. minimum
• Temperature Rating Lead Insulation: 482°F
INCLUDES
• Universal and standard mounting brackets• 2 ceramic wire nuts
• Furnace Ignitor
• Upgrade Service Label
• Complete instructions
| Electrical | |
|---|---|
| Voltage | 120 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.23 | Exterior Dimensions (D) (inches) | 1.100000 | Exterior Dimensions (W) (inches) | 0.670000 | Exterior Dimensions (H) (inches) | 18.640000 | Shipping Weight (lbs) | 1.000000 |
