C-Frame Inducer Motor Kit with Centrifugal Switch 1/200HP, 3000RPM, 208/230Vac, 0.25A
Item
21964K
FEATURES & BENEFITS
• Output HP: 1/200• Speed: 3000 rpm
• Current: 0.25A
• Voltage: 208/230Vac
• NEMA Frame: C-Frame
• Enclosure: Open
• Ambient Temperature: 40°C
• Motor Type: Shaded Pole
• Bearings: Sleeve
• Hertz: 60
• Insulation Class: B
• Material: Metal
• Mounting Option: Bracket
• Overall Length: (In.): 9.00
• Overload Protection: Automatic
• Phase: Single
• Shaft Dimensions (In.) Dia x Lgth: 1/4 x 1-1/2
• Speeds: 1
• Stack Size (In.): 3/4
• Rotation: Clockwise
• Rotation is determined by viewing the shaft end.
INCLUDES

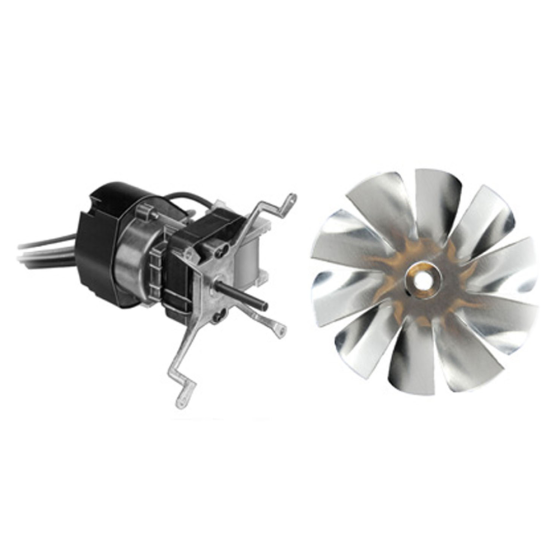

• This kit contains one Fasco K628 motor and three Fan Blades each with 10 blades and ¼" diameter bore, in diameters of 3", 3 ½" and 4".CROSS REFERENCE
• Fasco: 7102-0628• Fasco: 7102-2163
• Rheem: 51-21964-01
• Rheem: 51-21964-11
• Rheem: 70-21936-01
• Rheem: 70-21936-02
• Rheem: 70-21936-03
• Rheem: 7102-0628
• Rheem: 7102-2163
• Trane: MOT-3428
• Goodman: B19400
• Goodman: B1940000
• Nordyne: RH512196411
• Keeprite: 504015
• Keeprite: 50415K
• Johnstone: S88-888
Electrical | |
---|---|
Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2.9101 | Exterior Dimensions (D) (inches) | 5.900000 | Exterior Dimensions (W) (inches) | 6.400000 | Exterior Dimensions (H) (inches) | 3.800000 | Shipping Weight (lbs) | 5.000000 |
Warranty | |
---|---|
Parts Warranty | 1 Year |
