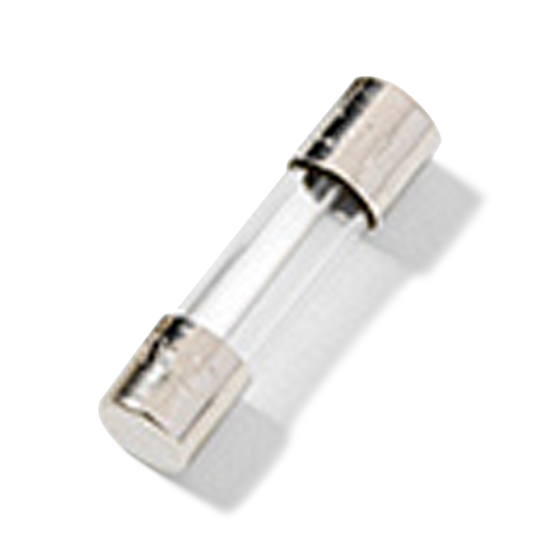

The 218 series fuse is a 5x20mm time-lag glass body cartridge fuse designed to IEC specification.
FEATURES & BENEFITS
• Designed to International IEC Standards for use globally • Meets the IEC 60127-2, Sheet 3 specification for Time-Lag fuses • Available in cartridge and axial lead form • RoHS compliant and lead-free • Nominal Melting I2T (A2sec): 38.15 • IEC Marking: T3.15AL250V • Nominal Cold Resistance (Ohms): 0.0173 • Opening: Slo-Blo/Time Lag (T)/Time-Delay • VAC (V): 250 • Operating Temperature: -55° to 125°C
