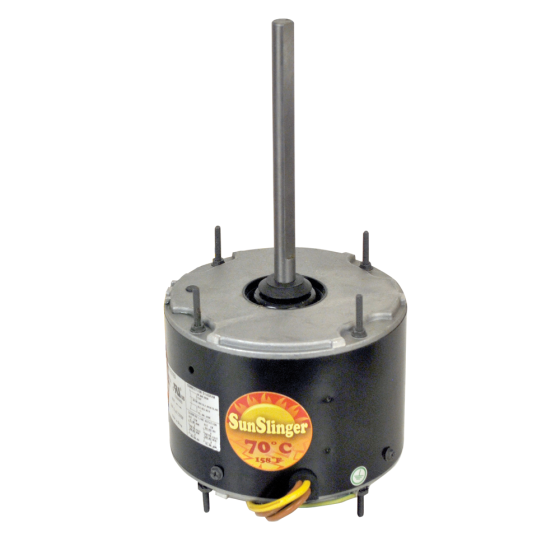

Mars® Condenser Fan Motor 1/2-1/5 HP, 1075 RPM, 460Vac, 0.7-1.3A, 10µF/370Vac, 1 Speed, 70°C (PSC)

Item
20479
  • California Prop 65

APPLICATIONS

MARS 70°C SunSlinger totally enclosed outdoor condenser fan motors are designed for all angle air conditioning or heat pump applications. A weep hole is provided in each end shield to allow condensate to drain.

FEATURES & BENEFITS

• Motor Type: PSC
• Enclosure: TEAO
• Voltage: 460
• Multi-Rated H.P.: 1/2-1/5
• Speeds: 1
• Hz: 60
• Rotation: CW/CCW
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: UL
• FLA: 1.3-0.7
• Mount: Band/Stud/Hole
• Bearing: Ball
• Shaft Length Inches: 6.5
• Shaft Dia Inches: 0.5
• Thermal Protection: Auto
• Ambient Deg C: -10C-+70C
• Ins. Class: F
• Capacitor Included: No
• Capacitor Rating: 10/370
• Rheem mounting holes w/screws installed
• Trane 4.33 bolt circle mounting holes and self tapping screws
• Extended thru bolt or band mounting and extra nuts
• Capacitor requirement noted on motor label
• Water slinger on shaft
• End shield drain holes w/plugs
• 48 inch leads

Specification
Ambient Temperature 70 °C
Motor HP 1/2 - 1/5
Motor Type PSC
Number of Speeds 1
RPM 1075
Electrical
Amps 1.3
Hertz 60
Voltage 460
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 11.95
Exterior Dimensions (D) (inches) 8.350000
Exterior Dimensions (W) (inches) 8.350000
Exterior Dimensions (H) (inches) 7.900000
Shipping Weight (lbs) 22.000000
