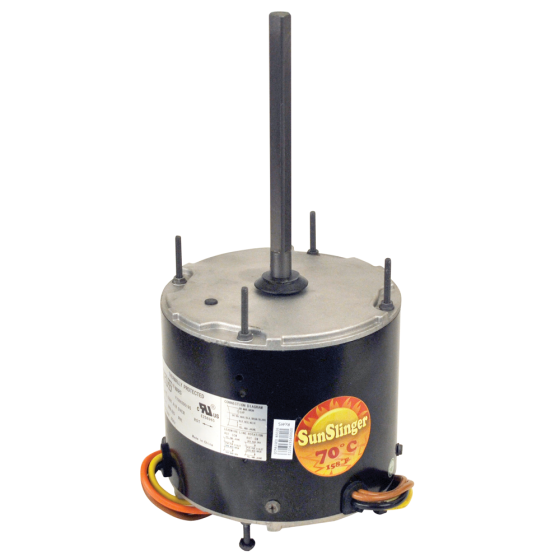

Mars® Multi- HP Condenser Fan Motor 1/6-1/3 HP, 825 RPM, 208/230Vac, 1.9A, 7.5/10µF/370Vac 2 Speed, 60 °C (PSC)
Item
20469
APPLICATIONS
MARS 70°C multi-horsepower SunSlinger condenser fan motors are ideal for truck stock.They are designed to provide reliable operation in a wide range of ambient temperatures.
FEATURES & BENEFITS
• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/3
• Voltage: 208-230
• Multi-Rated H.P.: 1/6-1/3
• Speeds: 2
• Hz: 60
• Rotation: REV
• RPM Range: 825
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 1.9
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 70
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 7.5/10/370
• 36 inch leads
• Fan duty, continuous, air over
• Totally enclosed
| Specification | |
|---|---|
| Ambient Temperature | 70 °C | Motor HP | 1/6 - 1/3 | Motor Type | PSC | Number of Speeds | 2 | RPM | 825 |
| Electrical | |
|---|---|
| Amps | 1.9 | FLA | 1.9 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 16.1 | Exterior Dimensions (D) (inches) | 5.800000 | Exterior Dimensions (W) (inches) | 5.700000 | Exterior Dimensions (H) (inches) | 10.600000 | Shipping Weight (lbs) | 26.000000 |
