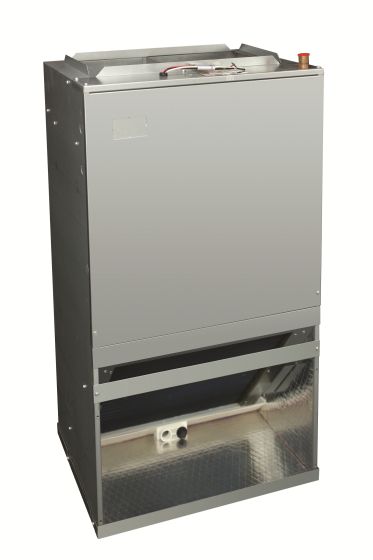

2 Ton Upflow Fan Coil, Fixed Speed, 208/1

Item
FMA4X2400AL
  • California Prop 65

APARTMENT FAN COILS
ALL MODELS

• 1-1/2, 2, 2-1/2, and 3 Tons.
• Upflow application only.
• Accessory field-installed electric heat kits available in 5, 7.5, or 10 kW.
• 208/230-1-60 supply voltage.
• Cabinet exterior is galvanized sheet metal.
• Cabinet air leakage rate below 1.4% when tested to ASHRAE Standard 193.
• Insulated for conditioned space. (not to be installed in unconditioned spaces)
• All Aluminum coils.

FMA4P

• For use with R-410A refrigerant utilizing standard piston.

FMA4X

• R-410A refrigerant, TXV standard.

PERFORMANCE

• PSC motor on all FMA4P.
• ECM motor on all FMA4X.
• Motor suspended on rubber grommets for quieter operation.
• Fresh air intake knockouts in cabinet.

EASY TO INSTALL AND SERVICE

• Units fits between standard stud spacings.
• All service access is located in the front.
• Primary and secondary drain connections exit from the bottom, access panel in bottom of cabinet.
• No return-air ductwork required in specific applications.
• Wall hanging brackets included with the unit.

Specification
Tonnage 2
Suction Line Size 3/4
Suction Line Fitting Sweat
Refrigerant R-410A
Metering Device TXV
Liquid Line Size 3/8
Liquid Line Fitting Sweat
Filter Size 16x20x2
Condensate Connection Size 3/4 FPT / 3/4 FPT
Coil Type Slope
Cased Yes
Blower Motor Type ECM
Blower Motor RPM 1050
Electrical
Hertz 60
MCA 2.4
MOCP 15
Phase 1
Voltage 208/230
Safety Standards
California Prop 65 Yes
Shipping Point 78264;37091;L5T2T5
Weights and Dimensions
Operating Weight (lbs) 101
Exterior Dimensions (D) (inches) 15.000000
Exterior Dimensions (W) (inches) 20.500000
Exterior Dimensions (H) (inches) 36.500000
Shipping Weight (lbs) 101.000000
