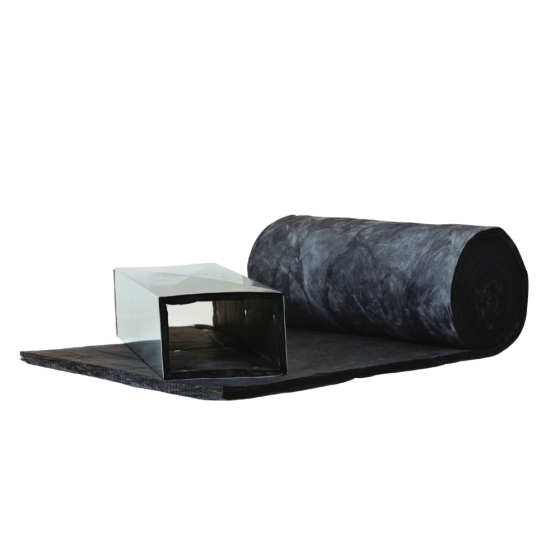

QuietR® Rotary Duct Liner (R4.2) 1 in. x 47 in. x 100 ft.

Item
1X47X100R
  • California Prop 65

APPLICATIONS

Owens Corning® QuietR® Rotary Duct Liner absorbs noise within sheet metal ducts, and contributes to indoor comfort by lowering heat loss or gain through duct walls. It is designed to be installed inside sheet metal ductwork or plenums with metal fasteners and adhesives. Ideal for use in large ducts and plenums where air velocities do not exceed 6,000 fpm (30.5 m/s).

FEATURES & BENEFITS

• Outstanding thermal and acoustical performance.
• Absorbs fan and air turbulence noise and reduces popping noises within sheet metal ducts.
• Strong, dark veil with a durable, cleanable surface designed to sustain the high demands of fast production.
• Flexible fiberglass roll allows shops to fabricate and insulate duct fittings without additional cutting.
• Bacterial and fungal growth resistant with an EPA registered biocide that helps protect the airstream surface from microbial growth.
• ASTM C1071, Type I, Flexible (replaces obsolete Federal Specification HH-1-545B.)
• Meets NFPA 90A/90B
• ICC Compliant
• California Title 24
• SMACNA Application Standard for Duct Liners
• NAIMA Fibrous Glass Duct Liner Installation Standard
• Conforms to ASHRAE 62-2001
• Thickness: 1 in.
• Length: 100 ft.
• R-Value: 4.2
• Operating Temperature: ASTM C411 250°F (121°C)
• Maximum Air Velocity: UL 181 Erosion Test ASTM C1071 6,000 fpm (30.5 m/s)
• Water Vapor Sorption: ASTM C1104 3% by weight at 120°F (49°C), 95% R.H.
• Fungi Resistance: ASTM C1338 Meets requirements
• Fungi Resistance ASTM G21 Meets requirements
• Bacteria Resistance: ASTM G22 Meets requirements
• Corrosiveness: ASTM C665 (Corrosiveness Test) Will not cause corrosion greater than caused by sterile cotton on aluminum or steel
• Flame Spread: 25
• Smoke Developed: 50

Specification
Length 100 ft.
R-Value R4.2
Thickness 1 in.
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 29.55
Exterior Dimensions (D) (inches) 53.070000
Exterior Dimensions (W) (inches) 53.070000
Exterior Dimensions (H) (inches) 119.400000
Shipping Weight (lbs) 90.000000
