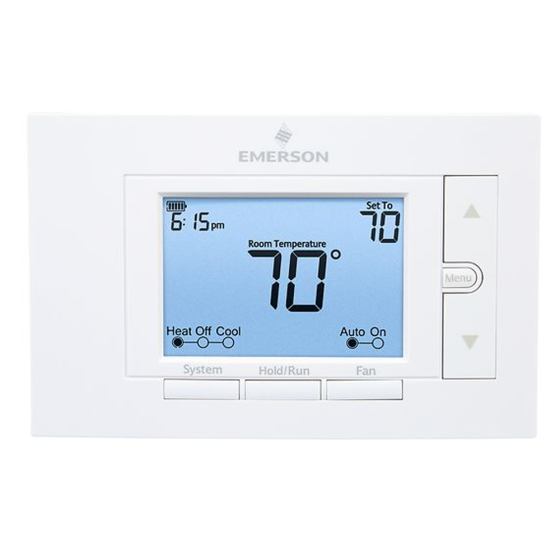

Emerson 80 Series™ 7/5+1+1 Day Programmable Thermostat 2H/2C (2H/1C HP), 24Vac/3Vdc (2 AA)

APPLICATIONS

Emerson 80 Series thermostats offer a footprint that fits the install, features that fit the homeowner and support that fits your business. With a large, backlit display, easy to use design, flexible programming and dependable performance, 80 Series thermostats are the perfect fit for every application.

FEATURES

• Large display, bright backlight, high contrast screen
• Easy to install with built-in level, simple set-up menu and separate subbase
• Selectable programming, choice of 7 Day, 5+1+1 Day, 5+2 Day, or Non-Programmable is standard
• Dual fuel control, no outdoor sensor required, standard on all staging models
• Auto changeover on all universal models
• Keypad lockout and adjustable heat/cool temperature limits
• 5 year limited warranty for professionals

SPECIFICATIONS

• Program Options: Programmable - 7 Day, 5+1+1 Day or Non-Programmable
• Program Periods Per Day Options: 4, 2, None
• Stages: Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• 3-Wire Zone Valve Connections: Yes
• Millivolt Compatible: Yes
• Economizer Connections: No
• Humidity Control: No
• Terminals: RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L
• Heat Pump Dual Fuel Control: Yes, No Sensor Required
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Battery, Hardwire
• Auto Changeover (Heat/Cool): Yes
• Fan Option: Auto, On
• Filter Change Reminder: Yes
• Energy Mgt. Recovery/Early Start: Yes
• Keypad Lockout: Total
• Set-Point Temperature Limits: Yes
• Display Type: 5 square in.
• Backlight: Key Press or Continuous with Common Wire
• Voltage: 20-30 Vac, NEC Class II 50/60Hz
• Battery Power Rating: mV to 30 Vac
• Amp Rating: Staging Models: 1.5 A per terminal, 2.5 A maximum all terminals combined; Single Stage Models: 1.0 A per terminal, 1.5 A maximum all terminals combined
