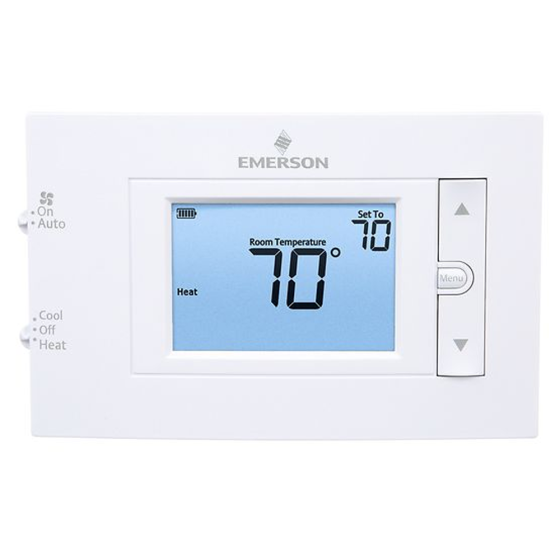

Emerson 80 Series™ Non-Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA)

Item
1F83C-11NP
  • California Prop 65

APPLICATIONS

Emerson 80 Series thermostats offer a footprint that fits the install, features that fit the homeowner and support that fits your business. With a large, backlit display, easy to use design, flexible programming and dependable performance, 80 Series thermostats are the perfect fit for every application.

FEATURES

• Large display, bright backlight, high contrast screen
• Easy to install with built-in level, simple set-up menu and separate subbase
• Non-Programmable
• Dual fuel control, no outdoor sensor required, standard on all staging models
• Auto changeover on all universal models
• Keypad lockout and adjustable heat/cool temperature limits
• 5 year limited warranty for professionals

SPECIFICATIONS

• Program Options: Non-Programmable
• Program Periods Per Day Options: None
• Stages: Single Stage - 1H/1C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• 3-Wire Zone Valve Connections: No
• Millivolt Compatible: Yes
• Economizer Connections: No
• Humidity Control: No
• Terminals: RC, RH, C, W, Y, O/B, G
• Heat Pump Dual Fuel Control: No
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Battery, Hardwire
• Auto Changeover (Heat/Cool): No
• Fan Option: Auto, On
• Filter Change Reminder: No
• Energy Mgt. Recovery/Early Start: No
• Keypad Lockout: Total
• Set-Point Temperature Limits: Yes
• Display Type: 4.5 square in.
• Backlight: Key Press or Continuous with Common Wire
• Voltage: 20-30 Vac, NEC Class II 50/60Hz
• Battery Power Rating: mV to 30 Vac
• Amp Rating: Staging Models: 1.5 A per terminal, 2.5 A maximum all terminals combined; Single Stage Models: 1.0 A per terminal, 1.5 A maximum all terminals combined

Specification
Backlight Yes
Display Size 4.5 sq. in.
Millivolt Compatible Yes
Permanent Hold No
Stages (Conventional) 1 Heat, 1 Cool
Stages (Heat Pump) 1 Heat, 1 Cool
Touchscreen No
WiFi Capability No
Temporary Hold No
Remote Sensing Capability No
Power Method Hardwire (24Vac)/Battery (3Vdc)
Key Pad Lockout Yes
Humidification Controls No
Filter Indicator No
Battery Backup Yes
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.65
Exterior Dimensions (D) (inches) 6.000000
Exterior Dimensions (W) (inches) 1.130000
Exterior Dimensions (H) (inches) 3.750000
Shipping Weight (lbs) 0.900000
