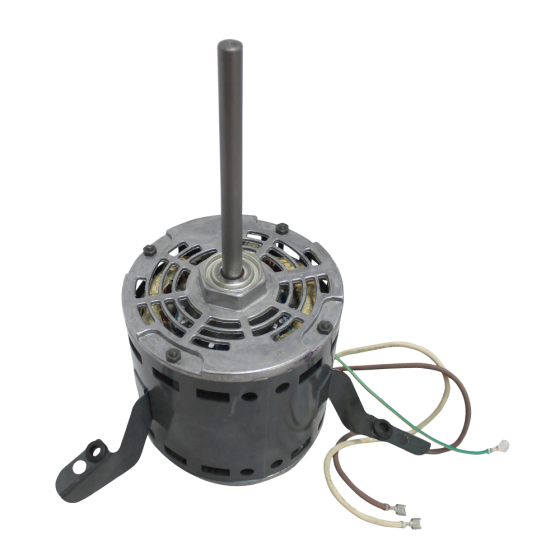

Direct Drive Blower Motor 3/4HP, 1025RPM, 460Vac, 1.6A, 3 Speed, 40 °C, (PSC)
Item
14B0006N05
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/4
• RPM: 1025/855
• Number of Speeds: 3
• Rotation: Counter-Clockwise
• Amperage: 1.6
• 1 Phase
• Hz: 60
• NEMA Frame Size: 48Y
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: F
• Ambient Temperature: 40 °C
| Electrical | |
|---|---|
| Amps | 1.6 | Hertz | 60 | Voltage | 460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 15.3 | Exterior Dimensions (D) (inches) | 12.000000 | Exterior Dimensions (W) (inches) | 10.250000 | Exterior Dimensions (H) (inches) | 10.250000 | Shipping Weight (lbs) | 17.050000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
