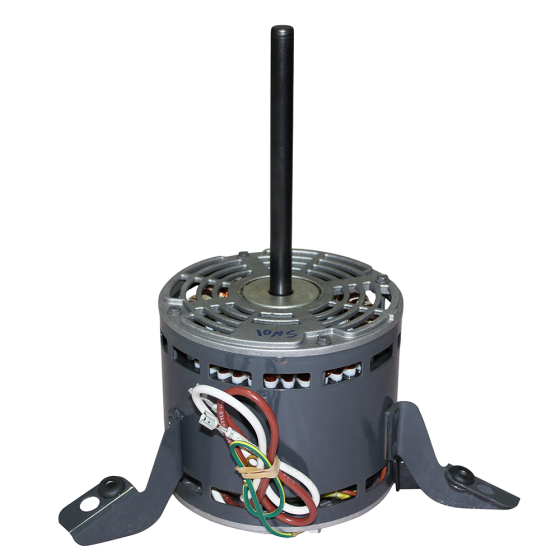

Direct Drive Blower Motor 1/3HP, 1050RPM, 208/230Vac, 2.2A, 10µF/370Vac, 3 Speed, 40 °C, (PSC)
Item
14B0005N01
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Motor Frame | 48Y | Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CCW LE | RPM | 1050 |
| Electrical | |
|---|---|
| Amps | 2.2 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 13.95 | Exterior Dimensions (D) (inches) | 9.500000 | Exterior Dimensions (W) (inches) | 10.500000 | Exterior Dimensions (H) (inches) | 11.125000 | Shipping Weight (lbs) | 15.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
