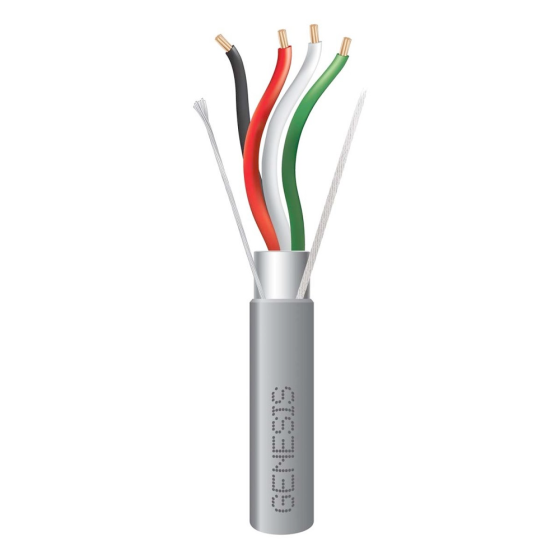

Genesis® Stranded-Shielded Riser Cable 14 AWG, 4-Conductors, 250' (Gray)

Item
22240109
  • California Prop 65

APPLICATIONS

This Genesis® Cable features 4 stranded 14 AWG copper conductors, an overall foil shield with a drain wire, and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.

FEATURES & BENEFITS

• Ratings: CL3R, FPLR, FT4, Sunlight Resistant
• Approvals: ETL Listed
• Conductor: 14 AWG 19 Strand Bare Copper
• Conductor Count: 4
• Insulation: Polypropylene (0.008" nom.)
• Insulation Colors: Black, Red, White, Green
• Lay Length: 4.25" nom.
• Shielding: Aluminum Foil/Mylar w/ 24 AWG Tinned-Copper Drain
• Rip Cord: Yes
• Jacket: PVC (0.017 " nom.)
• Overall Diameter: 0.252" nom.
• Operating Voltage: 300 Volts max.
• DC Resistance: 2.62 Ohms/1000' at 20°C
• Capacitance: 38.8 pF/ft. nom.
• Impedance: 38 Ohms nom.
• Temperature: -20°C to 75°C
• Flame Rating: UL 1666 (Riser); CSA C22.2 No. 2556 (FT4)
• RoHS Compliant: Yes
• Country of Origin: USA

Safety Standards
California Prop 65 Yes
Specification
Length 250 ft.
Conductors Qty 4
Wire Gauge 14
Weights and Dimensions
Operating Weight (lbs) 40
Exterior Dimensions (D) (inches) 12.000000
Exterior Dimensions (W) (inches) 12.000000
Exterior Dimensions (H) (inches) 10.000000
Shipping Weight (lbs) 40.000000
General
Color Gray
