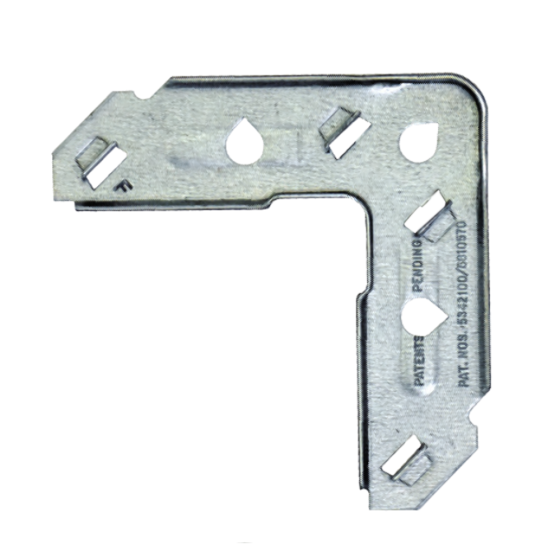

Duro Dyne® Stackable TDC® EZ Connector® Corner, 16 Gauge
APPLICATIONS
EZ Connector® is a revolutionary duct connection system that can save up to 50%+ labor costs in the field! This innovative system is the first and only corner system on the market that allows the contractor to fasten a patented locking bolt using a cordless impact driver.
EZ Connector Corners that work in conjunction with a patented rugged bolt. The bolt acts as an alignment tool due to its self-piloting screw tip which aligns the corners during installation.
FEATURES & BENEFITS
• Components – 1) Stamped corners of 16 gage G60 galvanized steel conforming to T-25a/T-25b rolled-on flanges as set forth in the SMACNA HVAC Duct Construction Standards (HVAC-DCS) 3rd edition having teardrop holes for the driving of ii) an EZ Bolt of .417-9 x 1” or .417-9 x 1-1/2” long. No nuts or washers are needed.
• Each component is supplied suitably-matched and compatibly load-rated based on testing and reference to the common practice of using 3/8” carriage bolts with nuts and washers.
• For connecting duct sections only one EZ Bolt is required for each of the four bolt-connector corners.
Specification | |
---|---|
Fitting Type | Materials | Fitting Sub Type | Corners |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 1.000000 |
