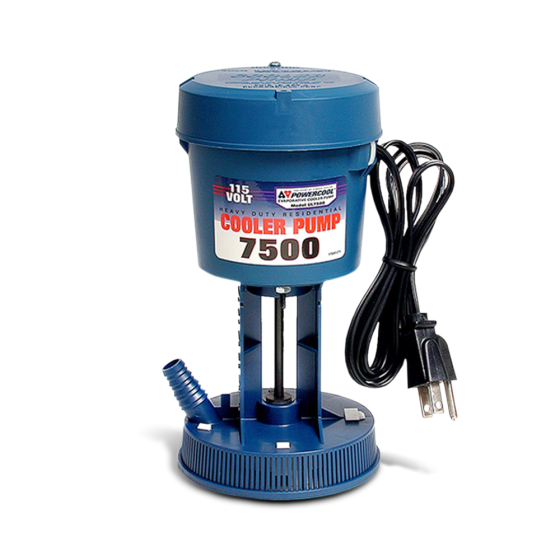

Dial® Heavy-Duty Concentric Cooler Pump 115Vac, 7,500 CFM, 360 GPH

Item

1175

FEATURES & BENEFITS

• Voltage: 115Vac
• Up to 7,500 CFM
• Up to 360 Gallons per Hour
• Residential Concentric Pump
• UL Classified
• Auto Reset Thermal Overload
• Flame Retardant Motor Housing
• Grounded 3 Prong Plug
• Low Level Pump
• Heavy Duty Motor

Specifications

Electrical
Voltage	115

Safety Standards
California Prop 65	Yes

Specification
Maximum CFM	7,500
Gallons Per Hour	360 @ 1 ft. Head Height

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	4.500000
Exterior Dimensions (W) (inches)	4.500000
Exterior Dimensions (H) (inches)	8.500000
Shipping Weight (lbs)	3.000000

Resources

1175_FlowRates.pdf

1175_Installation.pdf
